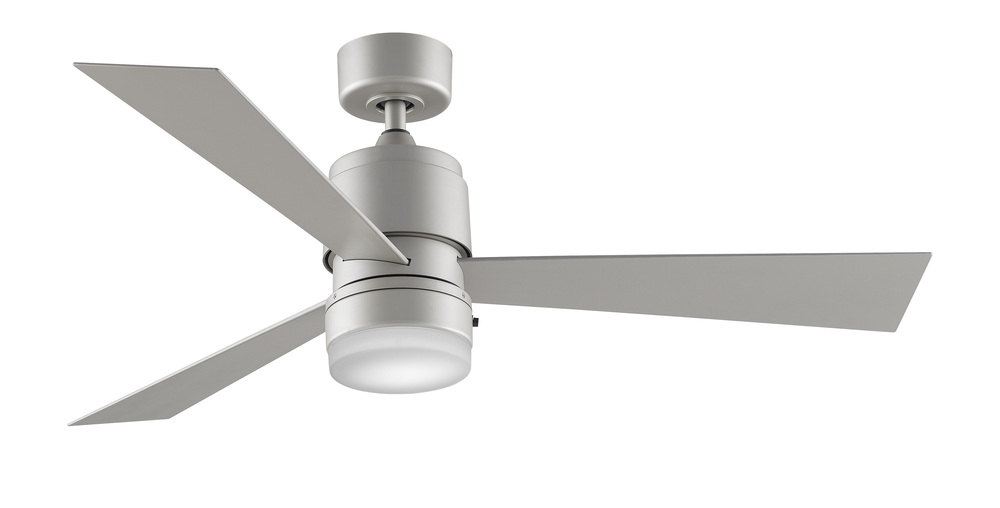

Sophisticated and stylish, The Zonix by Fanimation is the perfect eye candy for any contemporary room. The minimalist appearance and intelligent design of this three bladed ceiling fan are the perfect dichotomy of simple and smart. The Zonix is unipacked with fan control and blades included which makes this the perfect ceiling fan for anyone who wants contemporary fashion without any high maintenance hassles. The Zonix is available in oil-rubbed bronze and satin-nickel finishes with reversible cherry/walnut blades and satin-nickel finish with satin-nickel blades. The Zonix also has an optional light kit in both oil-rubbed bronze and satin-nickel finishes with opal frosted glass. *Wet Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Product Availability

Item appears to be in stock and ready to ship

Additional Information

18 Watt Led Light Kit With Bulb Available (sold Separately)

3 Speed Ac Motor With Reverse Switch - Compatible With 220 Volt Electricity Only

6379 Cfm On High

Pull Chain Operated

Set Of 3 52 Inch Blades With Multiple Wet Rated Finishes Included

Wifi Or Bluetooth Compatible (required Controls Sold Separately)

Info & Guides

Click Here to View Owners Manual

Technical Details

Energy Information at High Speed

Airflow:

4946 Cubic Feet per Minute

Electricity Rate:

43 Watts (excluded lights)

Airflow Efficiency:

83 Cubic Feet Per Minute Per Watt

Details

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Nickel /vendors/vendorImages nickel.jpg

Style:

Contemporary

Number of Blades:

3 Blades

Subfinish:

Satin Nickel

Category:

Fan-Uni

Finish:

Satin Nickel

Family:

Zonix Wet

Voltage:

240 V

Additional Info:

18 watt LED light kit with bulb available (sold separately)

3 speed AC motor with reverse switch - Compatible with 220 volt electricity only

6379 CFM on High

Pull Chain Operated

Set of 3 52 inch blades with multiple Wet Rated finishes included

WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

4946

Air Flow Efficiency:

Amperage:

0.18

Blade Finish:

Satin Nickel

Blade Pitch:

Blade Span:

43 - 54

Canopy:

5.75 Dia x 2.63 H

Diameter:

7.29

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

Light Kit Included:

Material:

Composite

Motor Fan Speed:

Motor RPM:

157

Motor Size:

153 X 18

Motor Type:

Pull Chain Included:

Yes

Ship Carton Height:

11.7

Ship Carton Length:

27.9

Ship Carton Width:

10.5

Ship Weight:

17.9

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

14.7

Wire Included:

80"

Airflow Efficiency Low:

234

Airflow Efficiency Medium:

103

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Reversible:

Blade Sweep:

43 - 54

Canopy Diameter:

5.75 Dia

Canopy Height:

2.63 H

Carton Cubic Feet:

1.98

Cartons Per Unit:

Case Height:

11.7

Case Length:

27.9

Case Quantity:

Case Weight Pounds:

17.9

Case Width:

10.5

CEC Uploaded:

Ceiling To Blade Edge:

13.23

Ceiling To Bottom:

13.23

CFM Low:

2103

CFM Medium:

3559

Compatible Accessories:

CCK8002SN, DR1-12SN, DR1-18SN, DR1-24SN, DR1-36SN, DR1-48SN, DR1-60SN, DR1-72SN, DR1-CPSN

Compatible Blades:

BPW4426CY, BPW4426WA, BPW4442CY, BPW4442WA

Compatible Controls:

BTCR9-220, CRL4WH-220

Compatible Light Kits:

LK4640SN-220

Compatible Wall Controls:

C1-220, C2-220, C3-220, C6-220

Country of Origin:

China

Current Draw High:

0.18

Current Draw Low:

0.08

Current Draw Medium:

0.12

DOE-FTC Uploaded:

DOEFTC Uploaded:

Downrod Length:

4.5

Exempt from DOE Procedure:

Yes

Housing Diameter:

7.29

Included Control Type:

Pull Chain

IP Rating:

IP21

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM High (VI):

157

RPM Low (II):

RPM Medium (IV):

106

Safety Rating:

TUV SUD Approved

Voltage Cycles:

50 hz

Watts Low:

Watts Medium:
