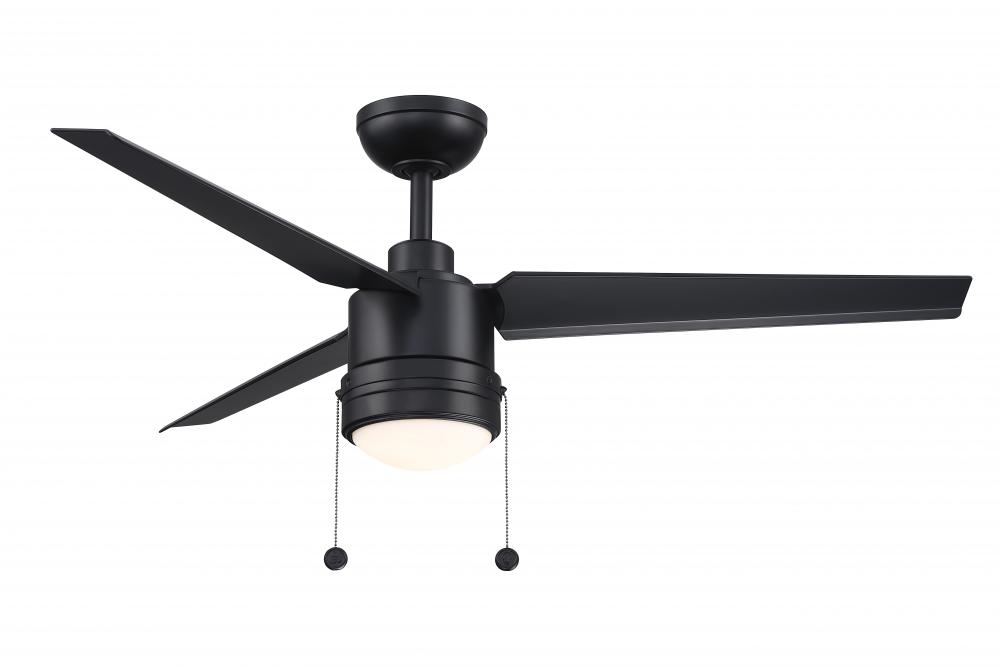

The Fanimation PC/DC Ceiling Fan is one of the newest inspirations, featuring Fanimation's first Pull Chain Ceiling Fan with a DC motor. The PC/DC is an indoor/outdoor 52 inch Ceiling Fan that offers Black, Matte White and Silver wet rated finishes with blades and LED light kit included. The PC/DC Fanimation Ceiling Fan has a look of sophistication and smooth structure, that can be displayed inside or outside the home. *Wet rated for Indoor/Outdoor use *Reverse airflow for multi-season use *Pull Chain motor control

Product Availability

Item appears to be in stock and ready to ship

Additional Information

3 Speed Dc Motor With Reverse Switch, Fan And Light Control

Energy Star Most Efficient 2022

Limited Lifetime Motor Warranty

Pull Chain Control

Set Of (3) 52 Inch Wet Rated Blades And 18 Watt Led Light Kit Included

Info & Guides

Click Here to View Spec Sheet Details

Click Here to View Owners Manual

Technical Details

Energy Information at High Speed

Airflow:

5874 Cubic Feet per Minute

Electricity Rate:

31 Watts (excluded lights)

Airflow Efficiency:

190 Cubic Feet Per Minute Per Watt

Details

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Black /vendors/vendorImages black.jpg

Style:

Traditional

Option:

Wet Rated

Voltage:

10-99

Lumens:

1101-1600

Number of Blades:

3 Blades

Location Rating:

Wet Rated

Wattage:

Category:

Fan-Uni

Finish:

Black /vendors/vendorImages black.jpg

Option:

Wet

Family:

Pc/dc

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Additional Info:

16 speed DC motor with reverse switch, fan and light control

CHINA

Energy Star Most Efficient 2022

Limited Lifetime Motor Warranty

Pull Chain Control

Set of (3) 52 inch wet rated blades and 18 watt LED light kit included

Air Flow CFM:

5874

Air Flow Efficiency:

190

Amperage:

0.47

Blade Finish:

Black

Blade Pitch:

Blade Span:

Bulb Type:

18 Watt LED Module

Canopy:

6.3 Dia x 2.56 H

Diameter:

7.52

Down Rod Included:

Electricity Used:

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

Light Kit Included:

Yes

Lumens / Light Output:

1500

Material:

Composite

Motor Fan Speed:

Motor RPM:

168

Motor Size:

100 X 30

Motor Type:

Ship Carton Height:

14.57

Ship Carton Length:

27.95

Ship Carton Width:

16.14

Ship Weight:

21.83

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

15.65

Airflow Efficiency Low:

832

Airflow Efficiency Medium:

419

Avg Airflow Efficiency:

188

Avg CFM Energy:

3649

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Pitch Degrees:

Blade Reversible:

Blade Sweep:

Bulb Base:

Connector Pin

Bulb CRI:

Bulb Wattage:

Canopy Diameter:

6.3 Dia

Canopy Height:

2.56 H

Cap Included:

Carton Cubic Feet:

3.8

Case Height:

14.57

Case Length:

27.95

Case Quantity:

Case Weight Pounds:

21.83

Case Width:

16.14

CEC Uploaded:

Yes

Ceiling To Blade Edge:

10.24

Ceiling To Bottom:

16.91

CFM Low:

1764

CFM Medium:

3723

Compatible Accessories:

CCK8002BLW, DR1-CPBL, DR1SS-12BLW, DR1SS-18BLW, DR1SS-24BLW, DR1SS-36BLW, DR1SS-48BLW, DR1SS-60BLW, DR1SS-72BLW, SCB1-52

Country of Origin:

China

CRI:

Current Draw High:

0.47

Current Draw Low:

0.07

Current Draw Medium:

0.17

DOE Classification:

LSSD

DOEFTC Uploaded:

Yes

Downrod Length:

Exempt from DOE Procedure:

Fan Energy Star:

Housing Diameter:

7.52

Included Control Type:

Pull Chain

Leadwire:

Light Kit Energy Star:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method:

Painted

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Switch Housing

RPM High (VI):

168

RPM Low (II):

RPM Medium (IV):

111

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 Hz

Watts Low:

Watts Medium:

Watts Per Bulb:

Wet Rated:

Yes
