Part Number: G7TX
/
Vendor ID Number: 90
/
Custom:

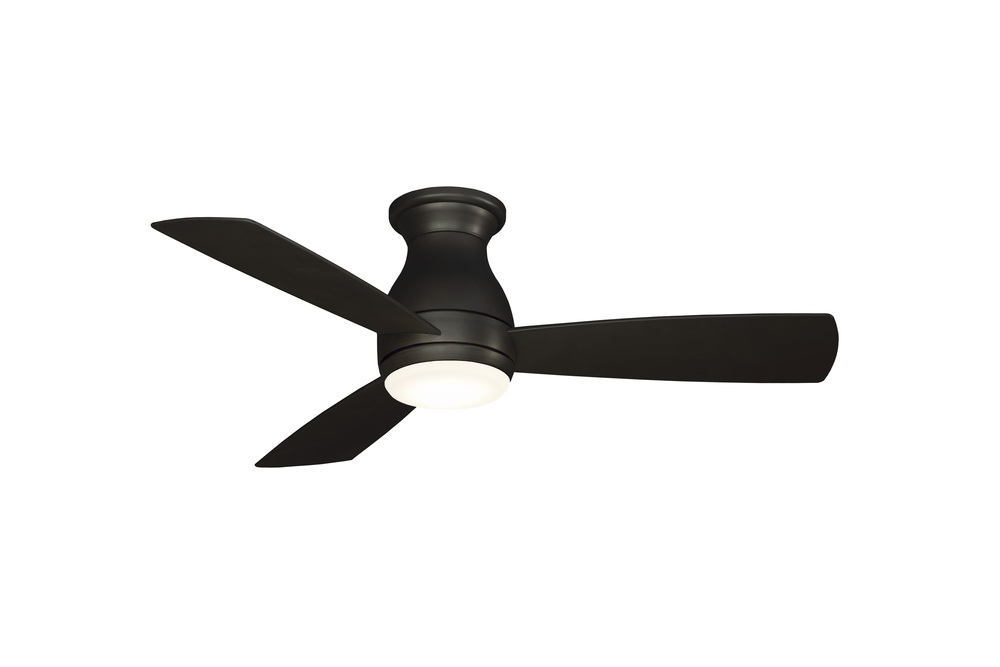

Hugh - 44 inch - DZW with DZ Blades and LED - 220V
149
98
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 11.74"
Width: 44.00"
Product Overview
Strong, sturdy, and ready for anything. Hugh is wet rated and offers its users powerful airflow for any indoor or outdoor space. Available with a 44 or 52 inch blade sweep and made from for durability, Hugh brings a cooling system with 3 speeds for preference. Integrated into the Fan body is a dimmable LED light kit for additional luminance in dark areas. Hugh includes a handheld remote and a light cap with purchase. For use with 220 volt electricity only - not intended for installation in the United States. *Wet Rated for indoor or outdoor use *Reversible airflow for multi-season use
Strong, sturdy, and ready for anything. Hugh is wet rated and offers its users powerful airflow for any indoor or outdoor space in both 44" and 52" inches. Made from metal for durability, Hugh brings cooling with 3 speeds for preference. Integrated into the fan body is a dimmable LED light kit for additional luminance in dark areas. Hugh includes a wall control and a light cap with purchase. *Wet Rated for indoor or outdoor use *Reversible airflow for multi-season use
Product Availability
-
Item has been discontinued
Additional Information
3 Speed Ac Motor With Reverse Switch - Compatible With 220 Volt Electricity Only
3785 Cfm On High
C6wh-8332-220 Wall Control Included
Limited Lifetime Warranty
Set Of (3) 44 Or 52 Inch Wet Rated Blades And 18 Watt Led Light Kit With Cover And Bulbs Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
Technical Details
Energy Information at High Speed
Airflow:
4140 Cubic Feet per Minute
Electricity Rate:
44 Watts (excluded lights)
Airflow Efficiency:
95 Cubic Feet Per Minute Per Watt
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Bronze /vendors/vendorImages bronze.jpg
Style:
Traditional
Option:
LED
Glass Finish or Style:
Frosted
Opal
Number of Blades:
3 Blades
Subfinish:
Dark Bronze
Category:
Fan-Uni
Finish:
Dark Bronze
Family:
Hugh 44
Glass:
Opal Frosted
Voltage:
240 V
Number of Bulbs:
1 Bulbs
Additional Info:
3 speed AC motor with reverse switch - Compatible with 220 volt electricity only
3785 CFM on High
Limited Lifetime Warranty
Set of (3) 44 or 52 inch Wet Rated blades and 18 watt LED light kit with cover and bulbs included
TR500 handheld remote with 23A battery included
WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
4140
Air Flow Efficiency:
95
Amperage:
0.18
Blade Finish:
Dark Bronze
Blade Pitch:
12
Blade Span:
44
Bulb Type:
18 Watt LED Module
Canopy:
6.77 Dia
Diameter:
7.85
Electricity Used:
44
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Length:
44
Light Kit Included:
Yes
Lumens / Light Output:
1460
Material:
Composite
Motor Fan Speed:
3
Motor RPM:
240
Motor Size:
153 X 17
Motor Type:
AC
Remote Control Included:
C6WH-8332-220
Ship Carton Height:
10.55
Ship Carton Length:
25.2
Ship Carton Width:
9.65
Ship Weight:
16.05
Sold By:
Each
Switch/Control Included:
Yes, C6WH-8332-220
Warranty:
Limited Lifetime
Weight:
13.89
Airflow Efficiency Low:
177
Airflow Efficiency Medium:
137
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
44
Bulb Base:
Connector Pin
Bulb CRI:
80
Bulb Wattage:
18
Canopy Diameter:
6.77 Dia
Cap Included:
No
Carton Cubic Feet:
1.48
Cartons Per Unit:
1
Case Height:
10.55
Case Length:
25.2
Case Quantity:
1
Case Weight Pounds:
16.05
Case Width:
9.65
CEC Uploaded:
No
Ceiling To Blade Edge:
9.36
Ceiling To Bottom:
11.35
11.74
CFM Low:
1700
CFM Medium:
2700
Compatible Controls:
BTCR9-220, CRL4WH-220
Country of Origin:
China
CRI:
80
Current Draw High:
0.18
Current Draw Low:
0.09
Current Draw Medium:
0.13
DOE-FTC Uploaded:
No
DOEFTC Uploaded:
No
Exempt from DOE Procedure:
Yes
Housing Diameter:
7.85
Included Control:
C6WH-8332-220
Included Control Type:
Wall
IP Rating:
IP21
Leadwire:
11
Max Watt:
44
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM High (VI):
240
RPM Low (II):
103
RPM Medium (IV):
212
RPM Medium High (V):
160
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
50 hz
Watts Low:
10
Watts Medium:
20
Watts Per Bulb:
18
