Part Number: K6J9
/
Vendor ID Number: 90
/
Custom:
Wrap Custom Motor - BS
489
98
Pack Of: 1
117 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 15.96"
Width: 64.00"
Product Overview

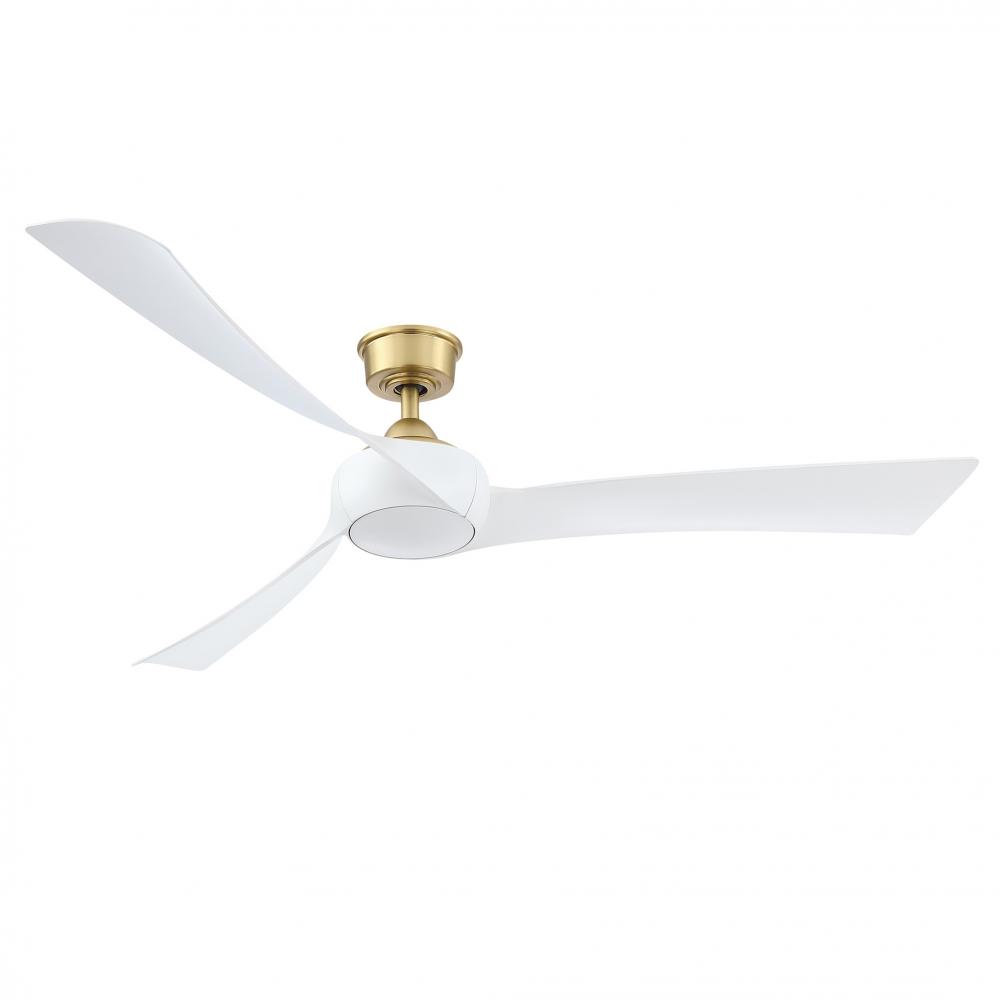

Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Product Availability
-
Item appears to be in stock and ready to ship
Additional Information
11206 CFM on High
Compatible with smart home devices using the Wi-Fi fanSync app
Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
Energy Star Most Efficient 2022
Set of (3) Damp Rated blades with multiple finish options available and 18 watt LED CCT Select light kit available (sold separately). Compatible with Wrap Custom blade sets with sweeps between 64 and 84 inches
Tr305 Handheld Remote With 23a Battery Included
Info & Guides
Technical Details
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Black /vendors/vendorImages black.jpg
Brass /vendors/vendorImages brass.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
Damp Rated
Voltage:
10-99
Number of Blades:
3 Blades
Category:
Fan-Multi
Finish:
Brushed Satin Brass
Option:
Damp Rated
Energy Star /vendors/vendorImages energy star.jpg
Family:
Wrap Custom
Voltage:
120V
Air Flow CFM:
11206
Air Flow Efficiency:
366
Blade Pitch:
Varied
Canopy:
6.14 Dia, 2.55 H
Harmonized Codes:
8414.51.3000
Length:
64, 72, 84
Max Width:
84
Motor Size:
153 x 25
Motor Type:
DC
Ship Carton Height:
7.6
Ship Carton Length:
16.34
Ship Carton Width:
8.86
Ship Weight:
16.1
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
13.3
Airflow Efficiency Low:
1172
Airflow Efficiency Medium:
827
Avg Airflow Efficiency:
420
Avg CFM Energy:
8762
Avg Energy Use Watts:
21
Avg Estimated Yearly Energy Cost:
6
Avg Estimated Yearly Energy Cost on HIGH:
9
Canopy Diameter:
6.14
Canopy Height:
2.55
Cap Included:
Yes
Case Quantity:
1
CEC Uploaded:
Yes
Ceiling To Blade Edge:
15.33
Ceiling to Bottom No LK:
15.96
Ceiling to Bottom with LK:
16.55
CFM Low:
3516
CFM Medium:
7859
Compatible Accessories:
DR1-12BS, DR1-18BS, DR1-24BS, DR1-36BS, DR1-48BS, DR1-60BS, DR1-72BS, DR1-CPBS, SCB1-52
Compatible Blades:
BPW8531-64BL, BPW8531-64BN, BPW8531-64DWA, BPW8531-64N, BPW8531-64WE, BPW8531-64WW, BPW8531-72BL, BPW8531-72BN, BPW8531-72DWA, BPW8531-72N, BPW8531-72WE, BPW8531-72WW, BPW8531-84BL, BPW8531-84BN, BPW8531-84DWA, BPW8531-84N, BPW8531-84WE, BPW8531-84WW
Compatible Light Kits:
LK8530BS
Compatible Wall Controls:
TW306
Country of Origin:
China
Current Draw High:
0.43
Current Draw Low:
0.05
Current Draw Medium:
0.15
Damp Rated:
Yes
DOE Classification:
LSSD
DOEFTC Uploaded:
Yes
Downrod Length:
8
Exempt from DOE Procedure:
No
Fan Energy Star:
Yes
Housing Diameter:
8.88
Included Control:
TR305
Included Control Type:
Handheld
Leadwire:
80
Max Ceiling Slope:
27
Max Watt:
31
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
81
RPM Low (II):
29
RPM Medium (IV):
56
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60HZ
Watts Low:
3
Watts Medium:
10
