Item Sales Info
Part Number: G2X2
/
Vendor ID Number: 90
/
Custom:
Windpointe Motor - OB - 220v
319
98
Pack Of: 1
- Manufacturers warehouse availability unknown.
- This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 14.50"
Width: 60.00"
Finish
OIL-RUBBED BRONZE
Product Overview

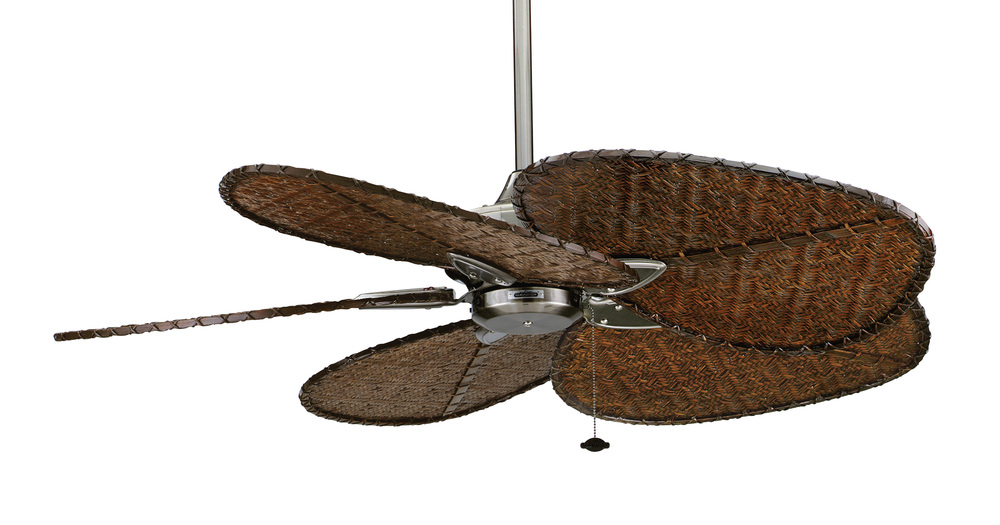

Windpointe Indoor/Outdoor Ceiling Fan Motor - Oil Rubbed Bronze - 220v
Beautifully crafted with style and versatility in mind, The Windpointe by Fanimation will provide the right look for any room. A myriad of fashionable blade options can be paired with The Windpointes three, four and five blade motors. For those in the market for a more traditional ceiling fan, The Windpointe can be paired with a variety of carved wood blades in finishes ranging from cairo purple to sambel sand. For a more organic look, The Windpointe can be paired with an array of natural palm leaf blades or woven bamboo blades. The Windpointe 3 blade series has earned the Energy Star for energy efficiency and is rated for both dry and damp locations. All Windpointe ceiling fans can accommodate a ceiling slope up to 30 degrees and operate on three forward and reverse speeds. The Windpointe series includes a 6 inch downrod and can also be purchased with an optional close-to-ceiling kit. *Antique Brass finish is Dry Rated for indoor use only; while the Oil-Rubbed Bronze and Rust finish are Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Product Availability
-
Item has been discontinued
Technical Details
Energy Information at High Speed
Airflow:
5010 Cubic Feet per Minute
Electricity Rate:
56 Watts (excluded lights)
Airflow Efficiency:
89 Cubic Feet Per Minute Per Watt
Details
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
Bronze /vendors/vendorImages bronze.jpg
Style:
Contemporary
Finish:
OIL-RUBBED BRONZE
Category:
FAN-MULTI
Family:
WINDPOINTE
Voltage:
240V
Additional Info:
3 speed AC motor with reverse switch
5227 CFM on High
Bluetooth connectivity
Compatible with 220 volt electricity only
Compatible with Bluetooth fanSync and most smart home devices (required controls sold separately)
Controls fan and uplight/downlight
Multiple blade options and adaptable light kit available (sold separately)
Pull Chain Operated
Set of 3 Damp Rated blades with multiple finishes and 18 watt LED light kit available (sold separate
Air Flow CFM:
5001
5010
Air Flow Efficiency:
89
Amperage:
0.37
Blade Pitch:
18
Blade Span:
52
Blades Included:
5
Canopy:
Diameter- 5.75, Height- 2.57
Diameter:
9.06
Down Rod Included:
6
Electricity Used:
56
Harmonized Codes:
8414.51.3000
Length:
52
Light Kit Included:
No
Max Length:
72
Max Width:
72
Motor Fan Speed:
3 Speed
Motor RPM:
129
Motor Size:
188 X 25
Motor Type:
AC
Pull Chain Included:
Yes
Ship Carton Height:
13.66
Ship Carton Length:
14.88
Ship Carton Width:
12.05
Ship Weight:
27.21
Sold By:
EACH
Warranty:
Limited Lifetime Warranty
Airflow Efficiency Low:
169
180
Airflow Efficiency Medium:
129
Brochure:
Cap Included:
No
Carton Cubic Feet:
1.4174
Cartons Per Unit:
1
Case Height:
11.93
13.66
Case Weight Pounds:
27.21
Case Width:
12.05
13.15
CEC Uploaded:
Yes
Ceiling to Bottom (No LK):
12
13.2
13.69
CFM Low:
1533
CFM Medium:
3106
Compatible Accessories:
CCK8002OB, DR1-12OB, DR1-18OB, DR1-24OB, DR1-36OB, DR1-48OB, DR1-60OB, DR1-72OB, DR1-CPOB, SCB1-52
Compatible Controls:
BTCR9, BTR9, CR500, CRL4LA, CRL4WH, WFR50
CR4WH-220
Compatible Light Kits:
F423OB-220, LK250-220
Compatible Wall Controls:
C1-220, C2-220, C3-220, C6-220
Control Type:
Pull Chain
Country of Origin:
China
Current Draw Low:
0.23
Current Draw Medium:
0.34
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
IP Rating:
IP20
Maximum Slope Degree:
27
Motor Finish Method:
Plated
Motor Reversible:
Yes
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM Low (II):
45
RPM Medium (IV):
79
Voltage Cycles:
50HZ
Watts Low:
9
Watts Medium:
24
