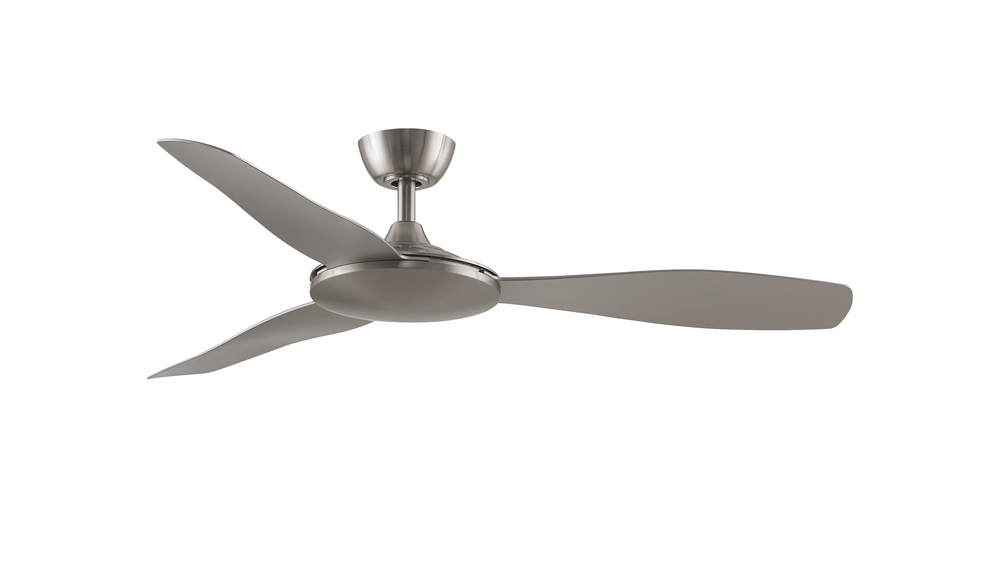

GlideAire by fanimation has a contemporary design and uses the latest technology. fanSync Bluetooth is included with purchase and GlideAire is WiFi compatible with the purchase of an optional control. This damp rated fan is available in three finish combinations and comes with a 31 speed DC motor. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation bluetooth fanSync app *Reversible airflow for multi-season use

Product Availability

Additional Information

5876 Cfm On High

Compatible With Most Smart Home Devices (required Controls Sold Separately)

Dc Motor With Reverse Switch, Variable Fan Speeds, Light Control, Sleep Timer, Home Away, Fresh Air

Energy Star Most Efficient 2020

Set Of (3) 52 Inch Damp Rated Black Or Brushed Nickel Blades Included

Tr205 Handheld Remote With Cr2032 Batteries Included

Info & Guides

Click Here to View Spec Sheet Details

Click Here to View Owners Manual

Technical Details

Energy Information at High Speed

Airflow:

5538 Cubic Feet per Minute

Electricity Rate:

26 Watts (excluded lights)

Airflow Efficiency:

215 Cubic Feet Per Minute Per Watt

Details

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

Nickel /vendors/vendorImages nickel.jpg

Style:

Traditional

Option:

Energy Star /vendors/vendorImages energy star.jpg

Damp Rated

Voltage:

10-99

Number of Blades:

3 Blades

Subfinish:

Brushed Nickel

Location Rating:

Damp Rated

Category:

Fan-Uni

Finish:

Brushed Nickel

Option:

Damp

Family:

Glideaire

Voltage:

120 V

Additional Info:

5876 CFM on High

Compatible with most Smart home devices (required controls sold separately)

DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air

ENERGY STAR Most Efficient 2020

Set of (3) 52 inch Damp Rated Black or Brushed Nickel blades included

TR205 handheld remote with CR2032 batteries included

Air Flow CFM:

5538

Air Flow Efficiency:

215

Amperage:

0.36

Blade Finish:

Brushed Nickel

Blade Pitch:

Canopy:

5.71 Dia x 2.23 H

Diameter:

11.02

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

Light Kit Included:

Material:

Composite

Motor Fan Speed:

Motor RPM:

173

Motor Size:

158 X 15

Motor Type:

Remote Control Included:

TR205D

Ship Carton Height:

8.58

Ship Carton Length:

24.61

Ship Carton Width:

12.8

Ship Weight:

15.9

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

13.3

Airflow Efficiency Low:

192

Airflow Efficiency Medium:

456

Avg Airflow Efficiency:

218

Avg CFM Energy:

3746

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Reversible:

Blade Sweep:

Canopy Diameter:

5.71 Dia

Canopy Height:

2.23 H

Cap Included:

Carton Cubic Feet:

1.56

Cartons Per Unit:

Case Height:

8.58

Case Length:

24.61

Case Quantity:

Case Weight Pounds:

15.9

Case Width:

12.8

CEC Uploaded:

Yes

Ceiling To Blade Edge:

9.15

Ceiling To Bottom:

9.98

CFM Low:

538

CFM Medium:

3371

Compatible Accessories:

CCK8002BN, DR1-12BN, DR1-18BN, DR1-24BN, DR1-36BN, DR1-48BN, DR1-60BN, DR1-72BN, DR1-CPBN, SCK1-52BN

Compatible Wall Controls:

TW306

Country of Origin:

China

Current Draw High:

0.36

Current Draw Low:

0.05

Current Draw Medium:

0.11

Damp Rated:

Yes

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

4.5

Exempt from DOE Procedure:

Fan Energy Star:

Yes

Housing Diameter:

11.02

Included Control:

TR205D

Included Control Type:

Handheld

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Plated

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High (VI):

173

RPM Low (II):

RPM Medium (IV):

105

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 Hz

Watts Low:

Watts Medium:
