Item Sales Info
Part Number: A36DN
/
Vendor ID Number: 81
/
Custom:

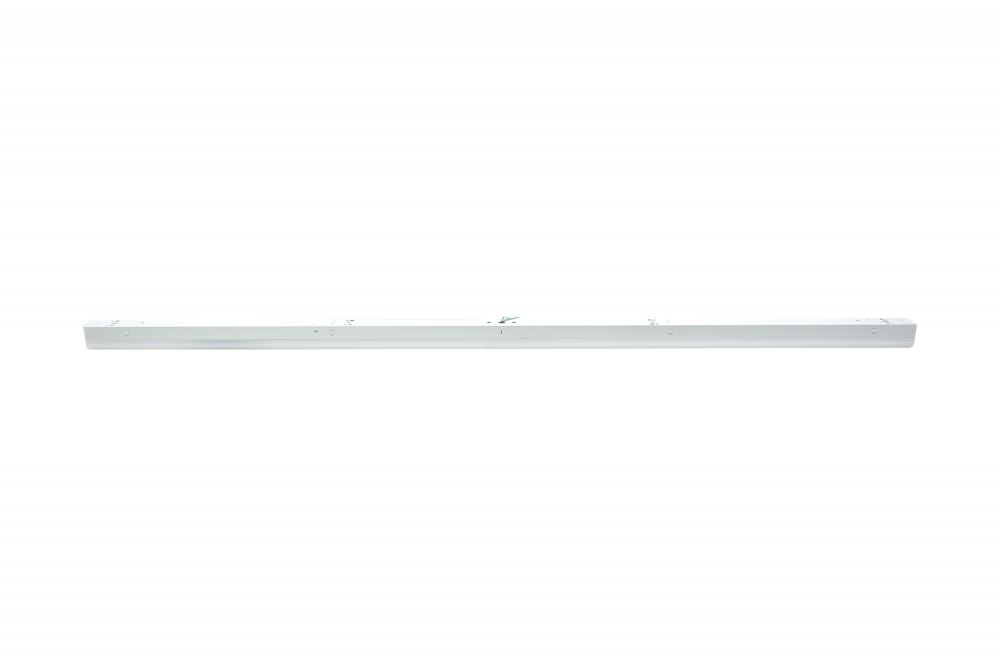

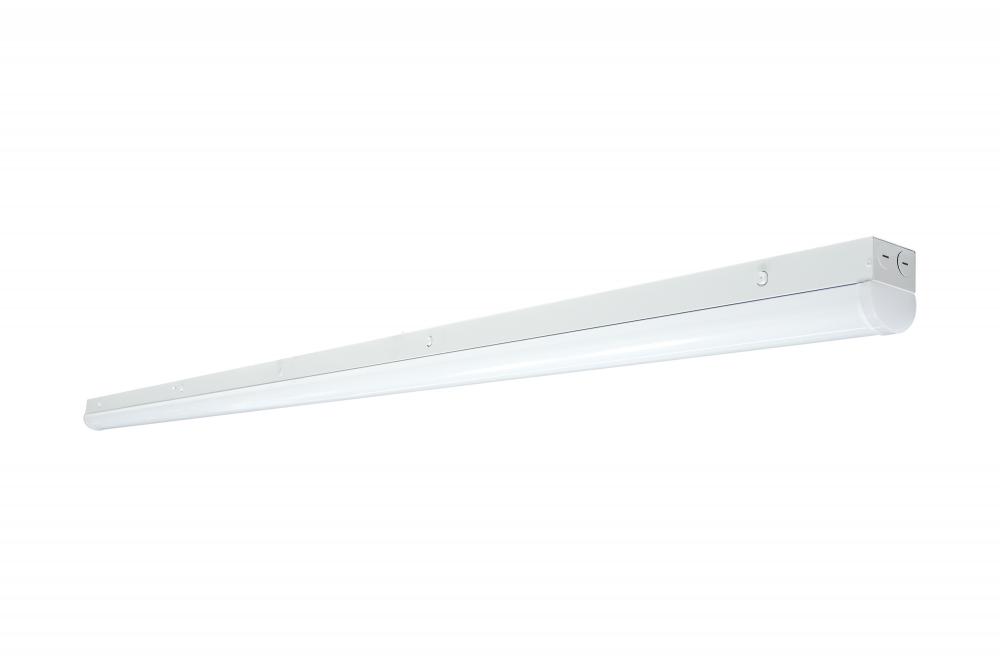

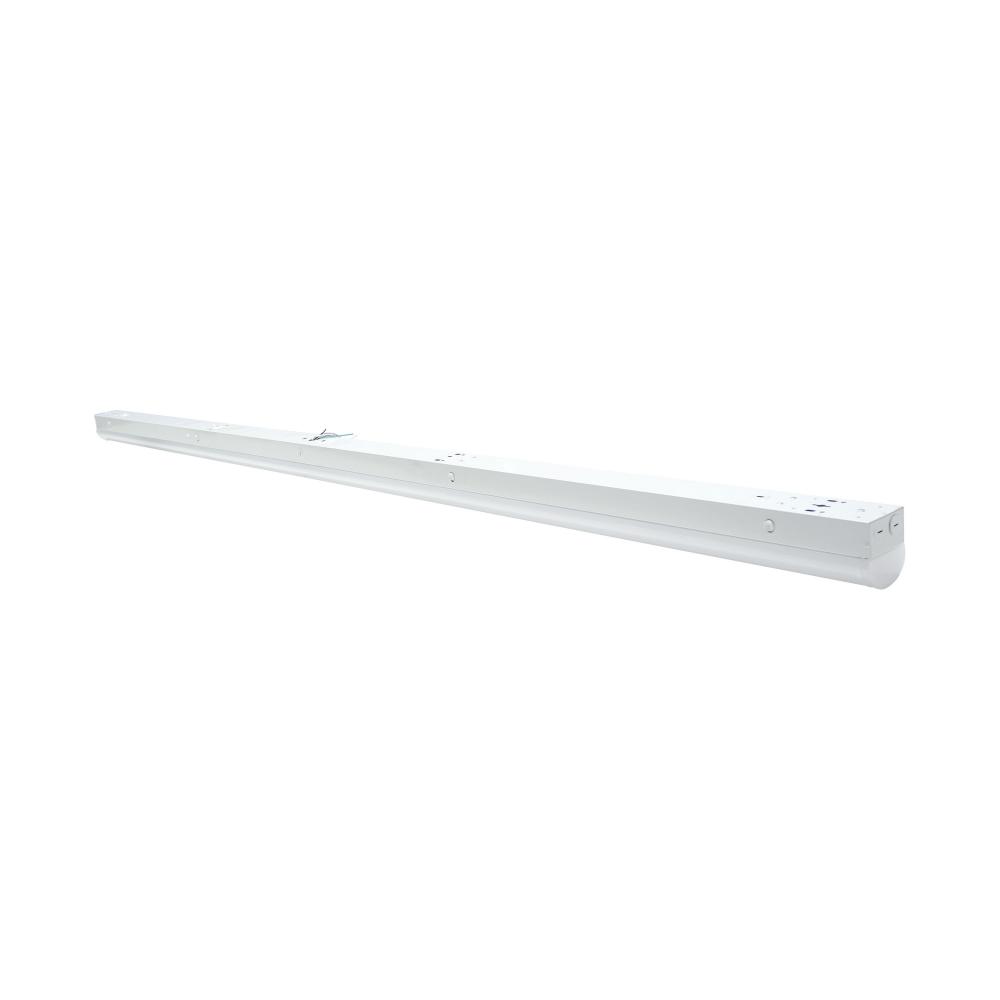

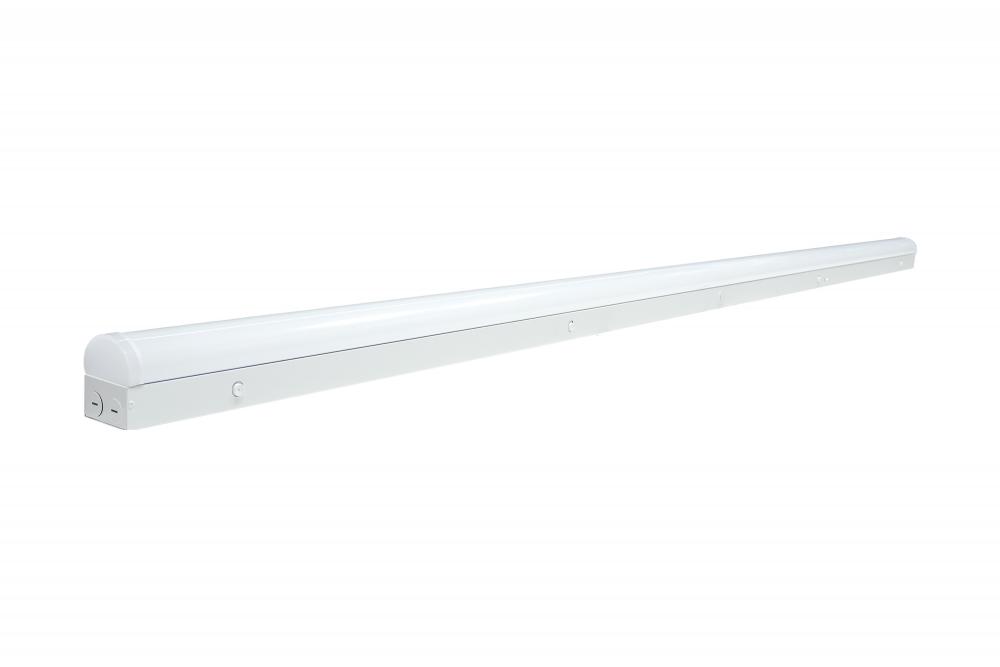

82 Watt; 8 ft. LED; Linear Strip Light; CCT Selectable; 120-347 Volt; White Finish
234
00
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 3.27"
Width: 2.95"
Finish
White
Product Overview
82 Watt; 8 Foot LED; Linear Strip Light; CCT Selectable; 120-347 Volt; White Finish
Product Availability
-
Purchase now and we'll ship when it's available
Technical Details
Details
Category:
Undercabinet
Subcategory:
Strip Lights
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Lumens:
3300+
Kelvin:
4001-4500
Finish:
White /vendors/vendorImages white.jpg
Category:
Linear Strip
Sub Category:
Strip Fixture
Style:
Utility
Additional Info:
Other DLC Listings: PLTRVDFB3IUR, Standard, Direct Linear Ambient Luminaires.
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Neutral White to Daylight
Dimmable:
Yes-Dimmable
Each Height:
5.32
Each Length:
98.03
Each Width:
5.2
Length:
96
Lumens:
10400L-10800L
Tariff Code:
9405.11.6010
Warranty:
5 Year Limited - Fixtures
Amps:
0.683-0.236A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
B_U_G_Rating:
B3-U4-G3
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium; Standard
DLC Primary Use:
Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires
Each Cube:
1.5694
Each Quantity:
1
Efficacy:
126.83/129.27/131.71 LPW
FCC Compliant:
Yes
Feature 1:
CCT Selectable 3500K/4000K/5000K
Feature 2:
120V-347V
Feature 3:
3KV Surge Protection
Feature 4:
0-10V Dimmable
Feature 5:
80 CRI
Feature 6:
50,000 Hours
Feature 7:
5 Year warranty
Finish Family:
White
Flicker Free:
Yes
Has Driver:
Yes
HID Equiv:
150W
Incandescent Equivalent:
550W
Indoor Outdoor:
Indoor
Installation Notes:
Maximum connected units are 7. If dimming, the dimmer max load will dictate how many units can be on the run/control.
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:
Introducing SATCO NUVO's newest addition to our LED strip lights. SATCO NUVO's 65-703 is a new cULus listed 82-Watt high lumen 8-foot strip addition is CCT selectable (3500K/4000K/5000K) just like its wattage and CCT selectable counter parts (65-70
Material:
Steel

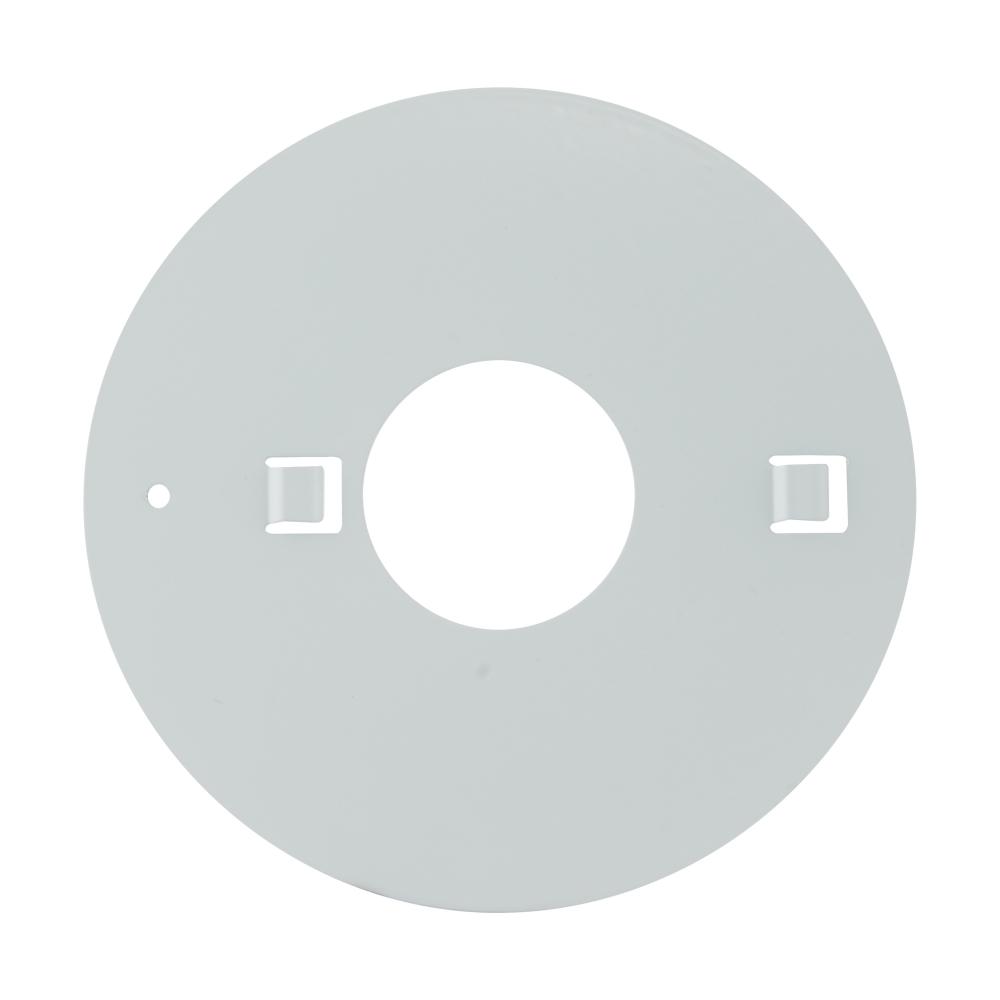

Mounting Diameter:
4.75
Mounting Procedure:
Ceiling/Wall
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +60C (+140F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Optional Add-On
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
27
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Introducing SATCO NUVO's newest addition to our LED strip lights. This new cULus listed 82-Watt high lumen 8-foot strip addition is CCT selectable (3500K/4000K/5000K) just like its wattage and CCT selectable counter parts (65-701 and 65-702.) It has a
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
8'LINEAR STRIP WHITE FINISH
Sloped Ceiling Compatible:
Yes
Specification Notes:
Add on sensors, 86-202 and 86-211, are only rated for 120-277 Volt
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
No
Weight Lb.:
6.84
