Part Number: X6T7C
/
Vendor ID Number: 27
/
Custom:

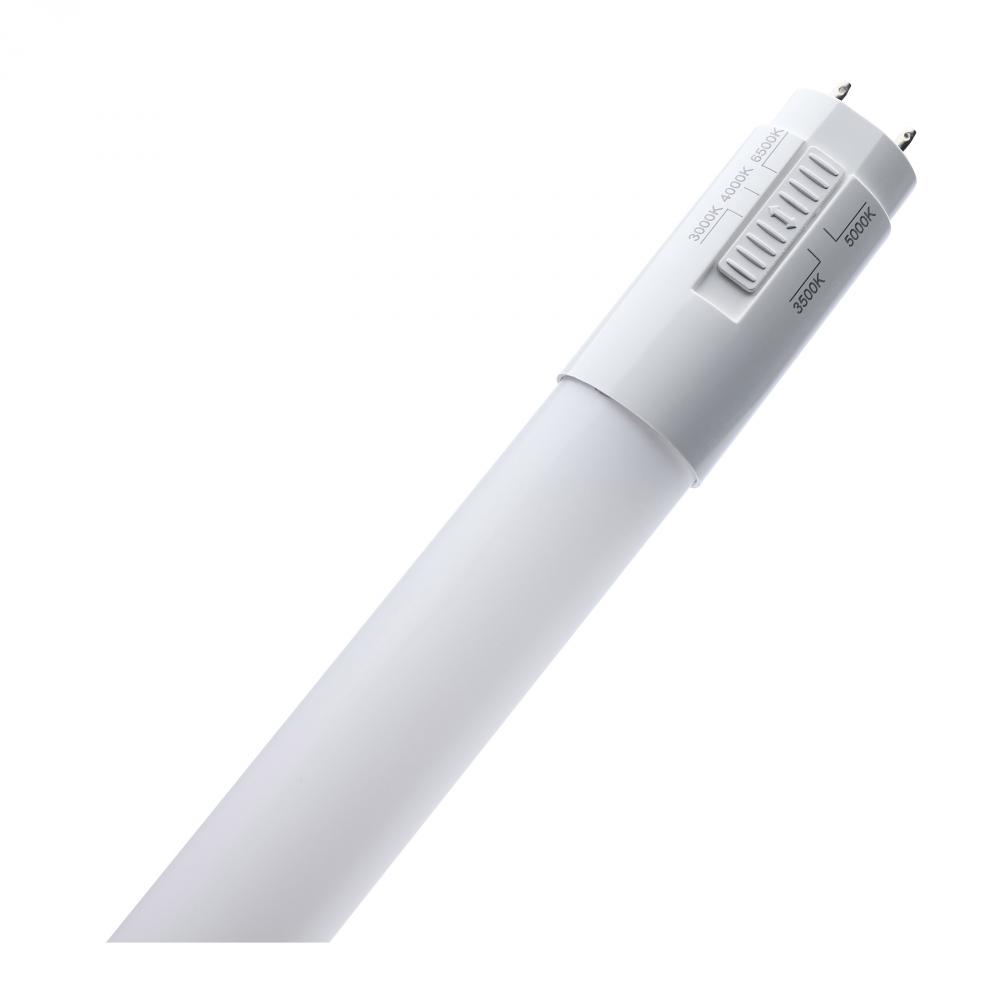

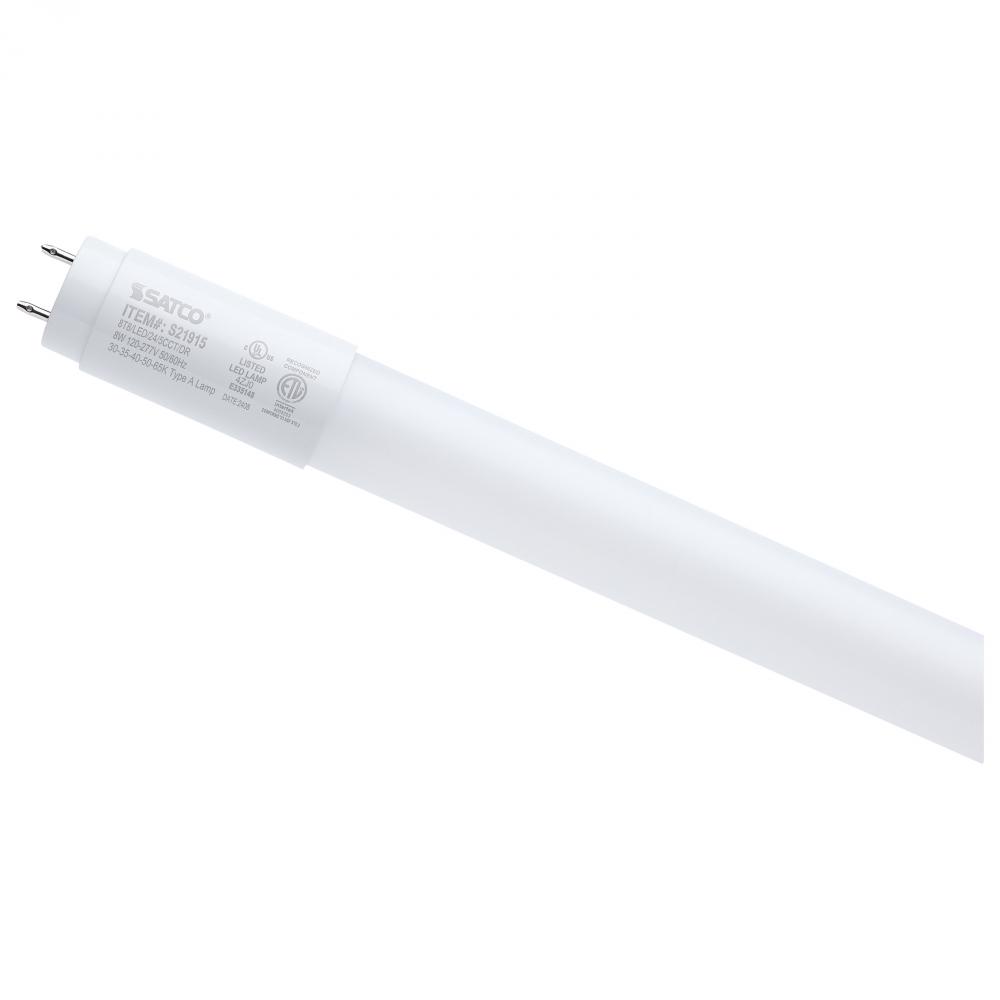

8 Watt; 2 Foot T8 LED; G13 Base; 30K/35K/40K/50K/65K CCT Selectable; Type A; Frost
11
90
Pack Of: 1
5251 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.00"
Product Overview
8 Watt; 2 Foot T8 LED; G13 Base; 30K/35K/40K/50K/65K CCT Selectable; Type A; Frost
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish Family:
Frost
Category:
LED
Sub-Category:
LED T8
Volts:
Ballast Dependent
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Bulb Shape:
T8
Diameter:
1
EA Length:
24
Harmonized Codes:
8539.52.0051
Length:
23.78
Lumens:
1300L/1325L/1375L/1375L/1350L
Shap Carton Width:
1.18
Ship Carton Height:
1.18
Ship Weight:
0.27
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
0.24
Ballast Bypass Direct:
Direct
Ballasting Requirements:
Ballast required, check compatibility
Beam Spread:
220
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Carton Cubic Feet:
0.0193
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Daylight
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
Dimming Type:
Phase cut
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-LJLMQD
DLC Primary Use:
Replacement Lamps (Plug and Play) (UL Type A)
Efficacy:
162.50/165.63/171.88/171.88/168.75 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
2-Foot
Feature 10:
Double-Ended Wiring
Feature 2:
Type A - Ballast Compatible
Feature 3:
Dimmable with Select Ballasts
Feature 4:
Rated for use in enclosed fixtures
Feature 5:
up to 185 Lumens per Watt
Feature 6:
5 CCT Selectable
Feature 7:
Plug & Play T8 Replacements
Feature 8:
Frosted Glass Tube
Feature 9:
G13 Base
Flourescent Equivalent:
17W
Housing Color:
White
Incandescent Equivalent:
40W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type A
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
SATCO NUVO's S21915 LED T8 Lamps - Type A are range voltage compatible and CCT selectable for versatile for use in a variety of applications. With five selectable CCTs at installation, and dimmable with compatible ballasts down to 20 percent, these lam
Material:
Glass
Nominal Length:
24
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
>0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED T8 Lamps - Type A are range voltage compatible and CCT selectable for versatile for use in a variety of applications. With five selectable CCTs at installation, and dimmable with compatible ballasts down to 20 percent, these lamps allo
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
8T8/LED/24/5CCT/DR
Style:
Utility
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Watts:
8W
