Item Sales Info
Part Number: X6T9F
/
Vendor ID Number: 27
/
Custom:
4.5 Watt LED PL 2-PIN; G23 Base; 27K/30K/35K/40K/50K CCT Selectable; 120-277 Volt; Type B; Ballast
13
90
Pack Of: 1
3922 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

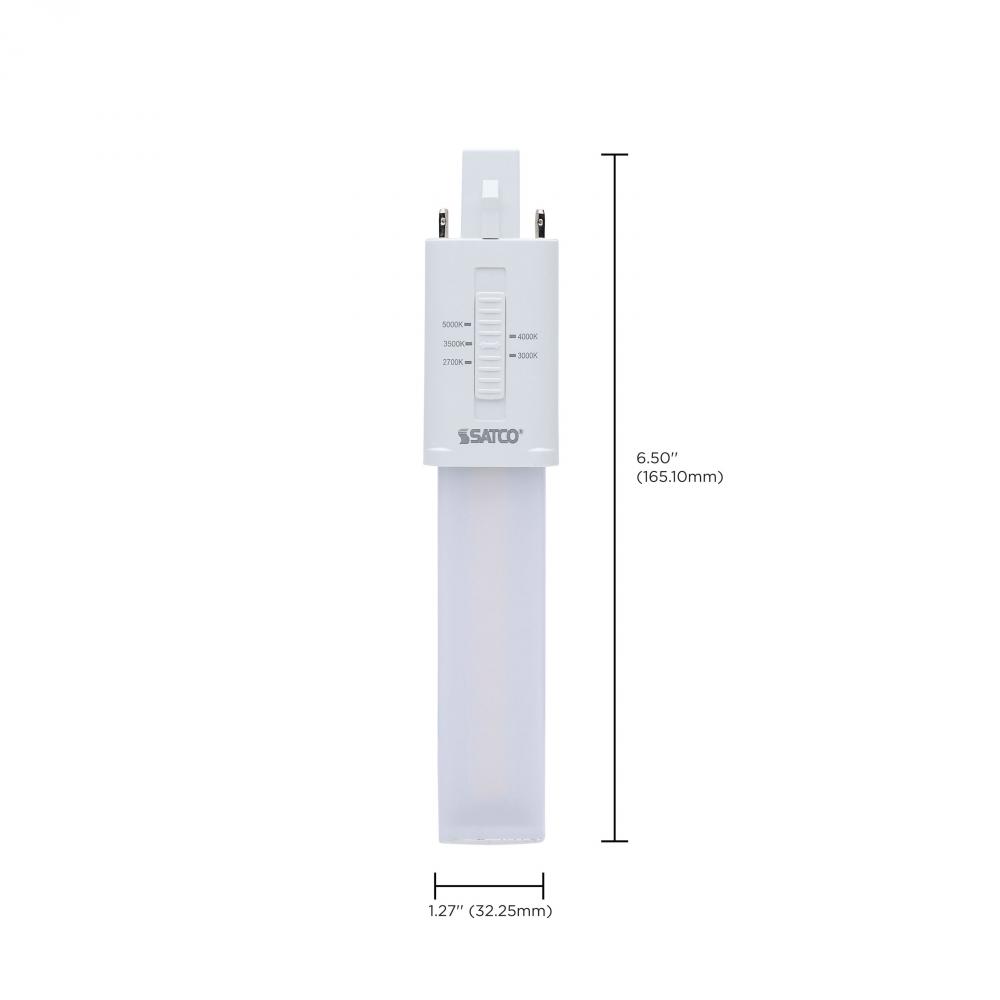

Dimensions
Width: 1.27"
Product Overview

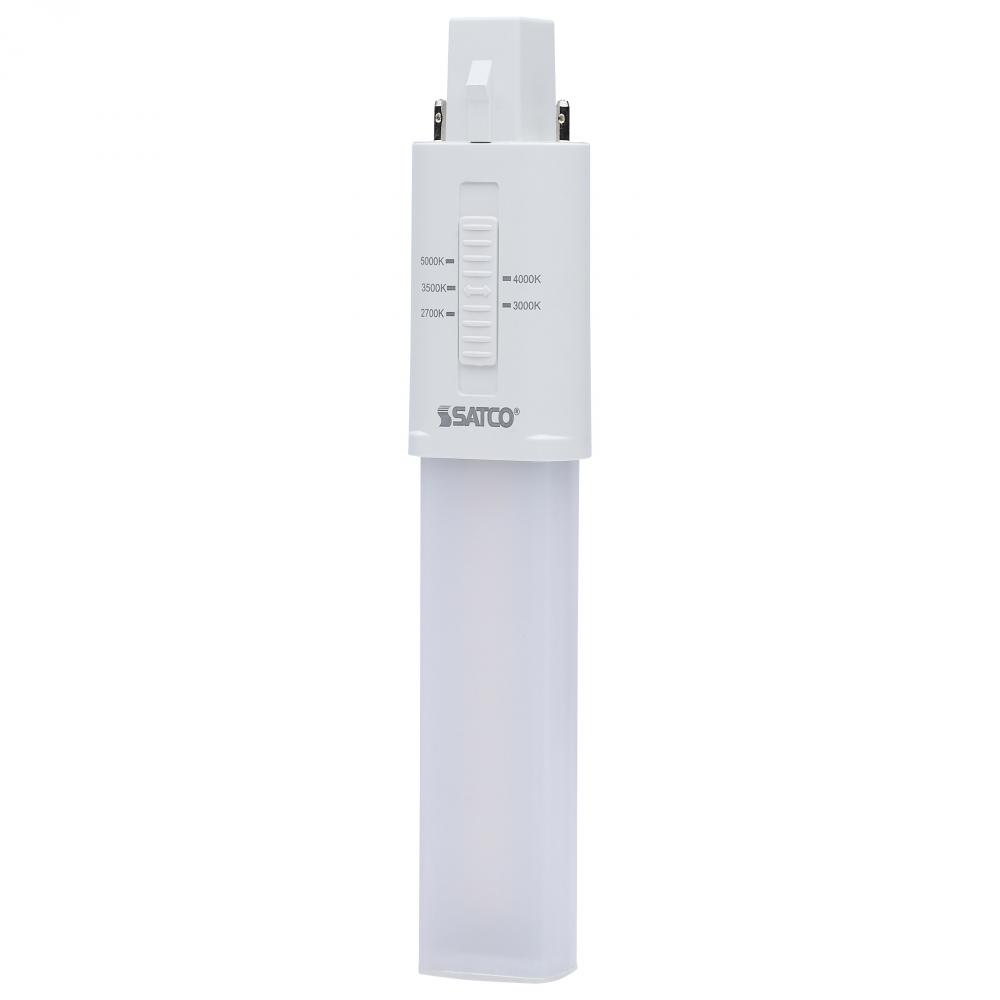

4.5 Watt LED PL 2-PIN; G23 Base; 27K/30K/35K/40K/50K CCT Selectable; 120-277 Volt; Type B; Ballast Bypass
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish Family:
Frost
Category:
LED
Sub-Category:
LED CFL Replacements Pin Based
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
2700K/3000K/3500K/4000K/5000K
Bulb Shape:
PL
Diameter:
1.27
EA Length:
1.46
Harmonized Codes:
8539.52.0091
Length:
6.5
Lumens:
450L/475L/500L/500L/475L
Shap Carton Width:
0.98
Ship Carton Height:
6.89
Ship Weight:
0.12
Warranty:
5 Year Limited - 10 hr per day
Weight:
0.09
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
360
Bulb ANSI Base:
G23
Bulb Base:
G23 (2-Pin)
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0057
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White to Natural Light
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
100.00/105.56/111.11/111.11/105.56 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
5 CCT Selectable
Feature 2:
Type B Ballast Bypass
Feature 3:
360 Degree Beam Spread
Feature 4:
G23 Lamp Base
Feature 5:
Damp Location Rated
Feature 6:
50,000 Hour Functional Life
Feature 7:
5 Year Warranty
Feature 8:
Double-Sided Illumination
Flourescent Equivalent:
5W/7W/9W
Housing Color:
White
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
Transform your lighting setup with SATCO NUVO's S18405 5.5W Type B LED lamp, a perfect replacement for 13W CFL lamps with a 2GX7 base. This lamp is engineered for ballast bypass installation, allowing for direct wiring to the main electrical supply, wh
Material:
Polycarbonate (PC)
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
Upgrade your lighting with SATCO NUVO's energy-efficient Type B ballast bypass LED replacement lamps. These innovative lamps are available in multiple base options to suit your needs. The 3.5W model for 5/7/9W CFL lamps with a 2G7 base and the 5.5W mod
SDS class:
LED_Lamp
Short Description:
4.5W/LED/CFL/5CCT/G23/BP
Style:
Transitional
Surge Protection:
Built-in surge protection - 1.5KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Watts:
4.5W
