Part Number: A36CR
/
Vendor ID Number: 81
/
Custom:

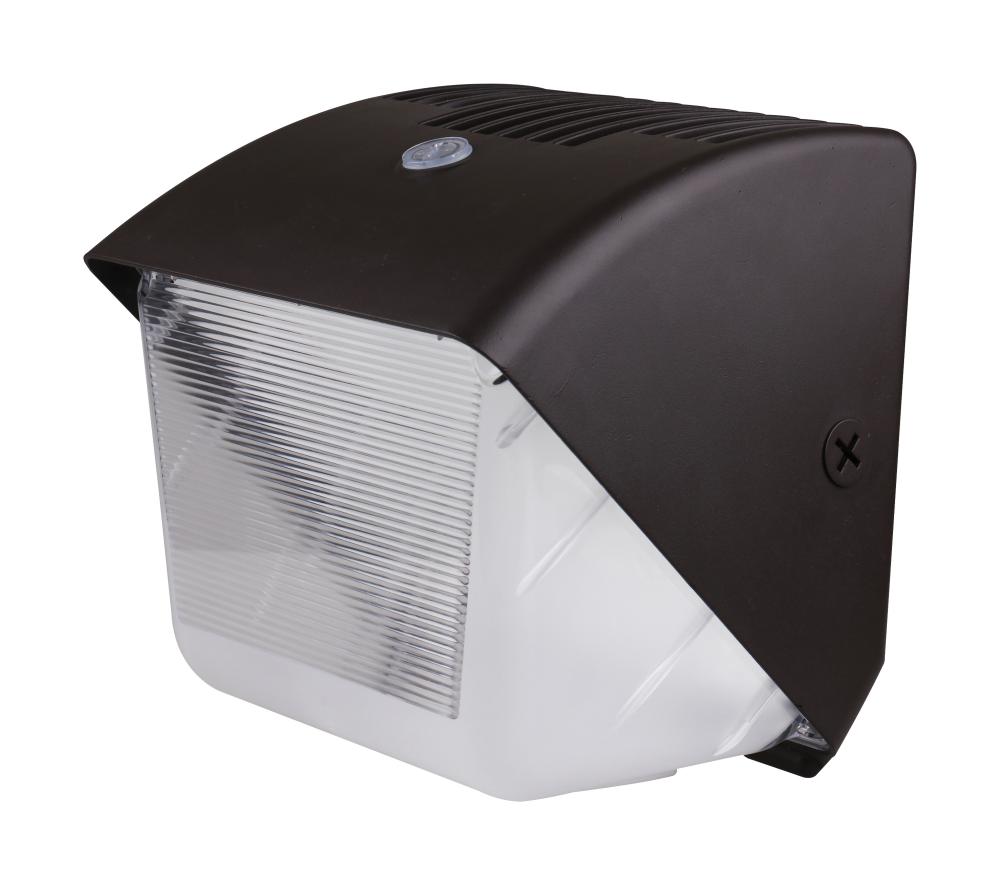

40 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts;
104
99
Pack Of: 1
- Manufacturers warehouse has 368 items available.
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 8.44"
Width: 8.50"
Finish
Bronze
Product Overview
40 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts; Dusk to Dawn Security Lighting; IP65; Bronze Finish
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Exterior
Sconces
Subcategory:
Wall Lights
Outdoor Wall Lights
Finish:
Bronze /vendors/vendorImages bronze.jpg
Style:
Traditional
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Lumens:
3300+
Kelvin:
4001-4500
Finish:
Bronze /vendors/vendorImages bronze.jpg
Category:
Wall Pack
Sub Category:
Mini
Style:
Traditional
Additional Info:
IK10 Lens
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Non-Dimmable
Each Height:
9.65
Each Length:
10.14
Each Width:
9.84
Lumens:
4200L-5000L
Tariff Code:
9405.42.6000
Warranty:
5-Years
Amps:
0.333-0.144A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
80
B_U_G_Rating:
B2-U3-G2
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
70+
Each Cube:
0.5572
Each Quantity:
1
Efficacy:
105.00/115.00/125.00 LPW
FCC Compliant:
Yes
Feature 1:
80 Degree Viewing Angle
Feature 2:
Integrated Bypassable Photocell
Feature 3:
CCT Selectable
Feature 4:
UV Stabilized Powder Coated Finish
Feature 5:
IP65 Rated
Finish Family:
Bronze
Flicker Free:
Yes
HID Equiv:
150W
Impact Rating (IK):
IK10
Incandescent Equivalent:
300W
Indoor Outdoor:
Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Long Description:
CCT selectable small wall packs in a compact size, perfect for light commercial use. They're built tough with UV-coated die-cast aluminum bodies and impact resistant IK10 lens for all-weather endurance. Designed to direct light where you need it most w
Material:
Aluminum / Polycarbonate (PC)
Mounting Procedure:
Wall
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Yes - Bypassable
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
2
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
CCT selectable small wall packs in a compact size, perfect for light commercial use. They're built tough with UV-coated die-cast aluminum bodies and impact resistant IK10 lens for all-weather endurance. Designed to direct light where you need it most w
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
40W LED SMALL WALL PACK
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Weight Lb.:
5.08
