Item Sales Info
Part Number: X6T79
/
Vendor ID Number: 27
/
Custom:

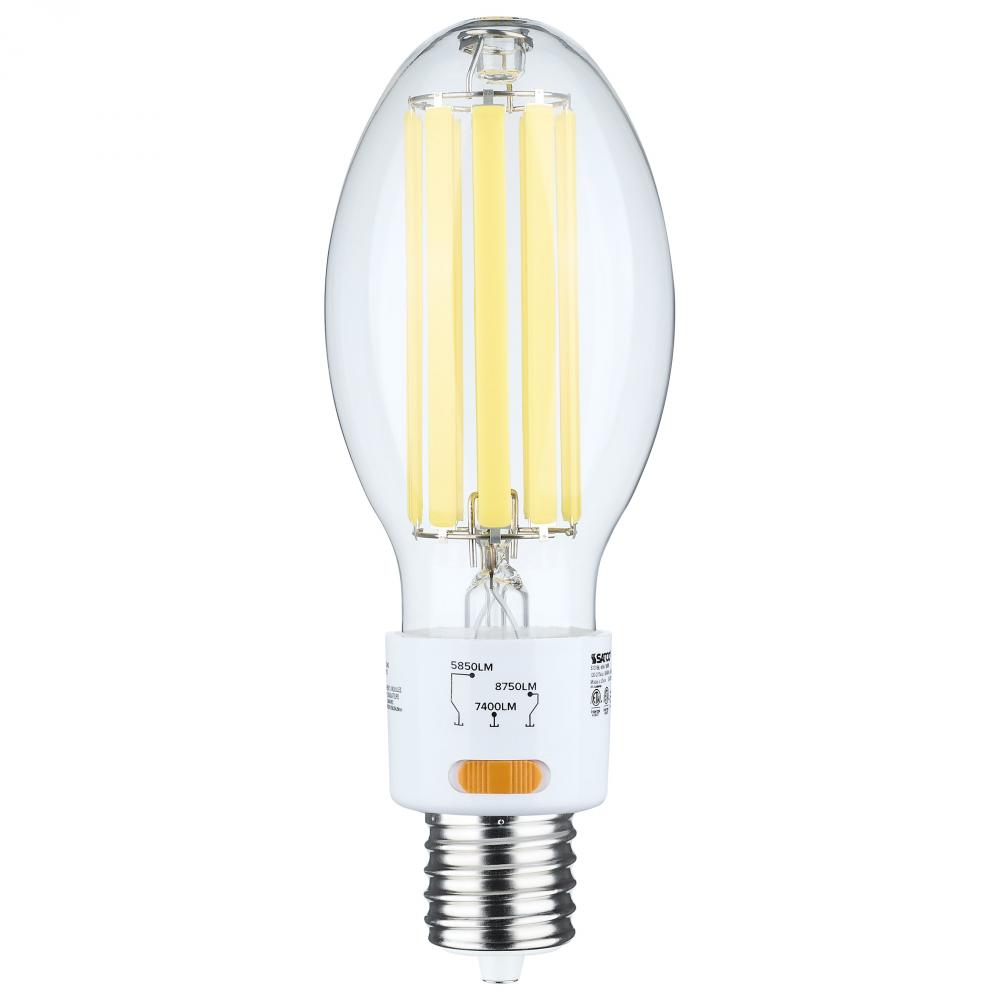

30/38/45 Wattage Selectable LED HID Replacement; ED28; 5000K; Mogul Extended Base; Clear; 120-277
93
90
Pack Of: 1
1560 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 3.58"
Product Overview
30/38/45 Wattage Selectable LED HID Replacement; ED28; 5000K; Mogul Extended Base; Clear; 120-277 Range Voltage
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish Family:
Clear /vendors/vendorImages clear.jpg
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
ED28
Diameter:
3.58
EA Length:
3.54
Harmonized Codes:
8539.52.0091
Length:
9.92
Lumens:
5850L/7400L/8750L
Shap Carton Width:
3.54
Ship Carton Height:
10.63
Ship Weight:
0.8
Warranty:
5 Year Limited - Hi-Pro
Weight:
0.8
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Beam Spread:
360
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
Clear
Burning Position:
Universal
Candle Power:
500
Carton Cubic Feet:
0.0771
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80+
Dimmable Function:
Only dimmable through wattage selection switch on lamp
Dimming Type:
Step Dimming
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-R38L9D
DLC Primary Use:
Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)
Efficacy:
195.00/194.74/194.44 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
Wattage Selectable
Feature 2:
Type B - Ballast Bypass
Feature 3:
Range Voltage 120V-277V
Feature 4:
360-Degree Illumination
Feature 5:
Wet location rated
Feature 6:
Universal Operating Position
Feature 7:
Glass Lamp
Feature 8:
EX39 Mogul base
Feature 9:
Rated for Use in Enclosed Fixtures
HID Equivalent:
150W/250W/320W
Housing Color:
White
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Location Rating:
Wet
Long Description:
SATCO NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. This CCT selectable ED28 model is designed for use in type B ballast bypass applications, to make the transition to LED lamps easy. Enjoy long-lasting
Material:
Glass
Minimum Compartment Size:
Length: 14.02 in. Width: 8.03 in. Height: 8.03 in.
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Color Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
4
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. Offered in a field selectable ED28 model or CCT selectable in ED28 and ED37 models. Designed for use in type B ballast bypass applications, these lamps
SDS class:
LED_Lamp
Short Description:
45W/LED/HID/ED28/850/EX39/CL
Style:
Utility
Surge Protection:
Built-in surge protection - 3KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Watts:
30W/38W/45W
