Item Sales Info
Part Number: X6T80
/
Vendor ID Number: 27
/
Custom:

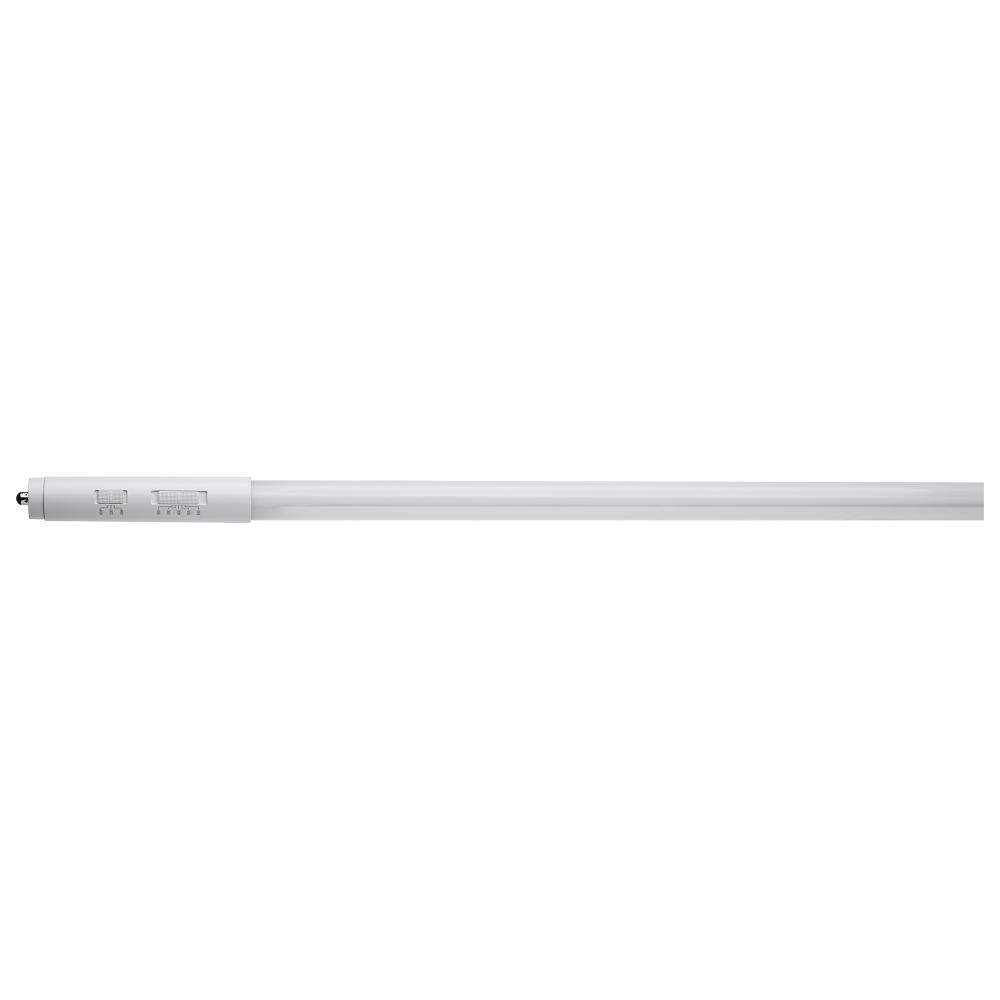

24/32/40 Wattage Selectable; 30/35/40/50/65K CCT Selectable; 8 Foot LED; Fa8 Base; 120-277 Volt;
37
90
Pack Of: 1
5019 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.00"
Product Overview

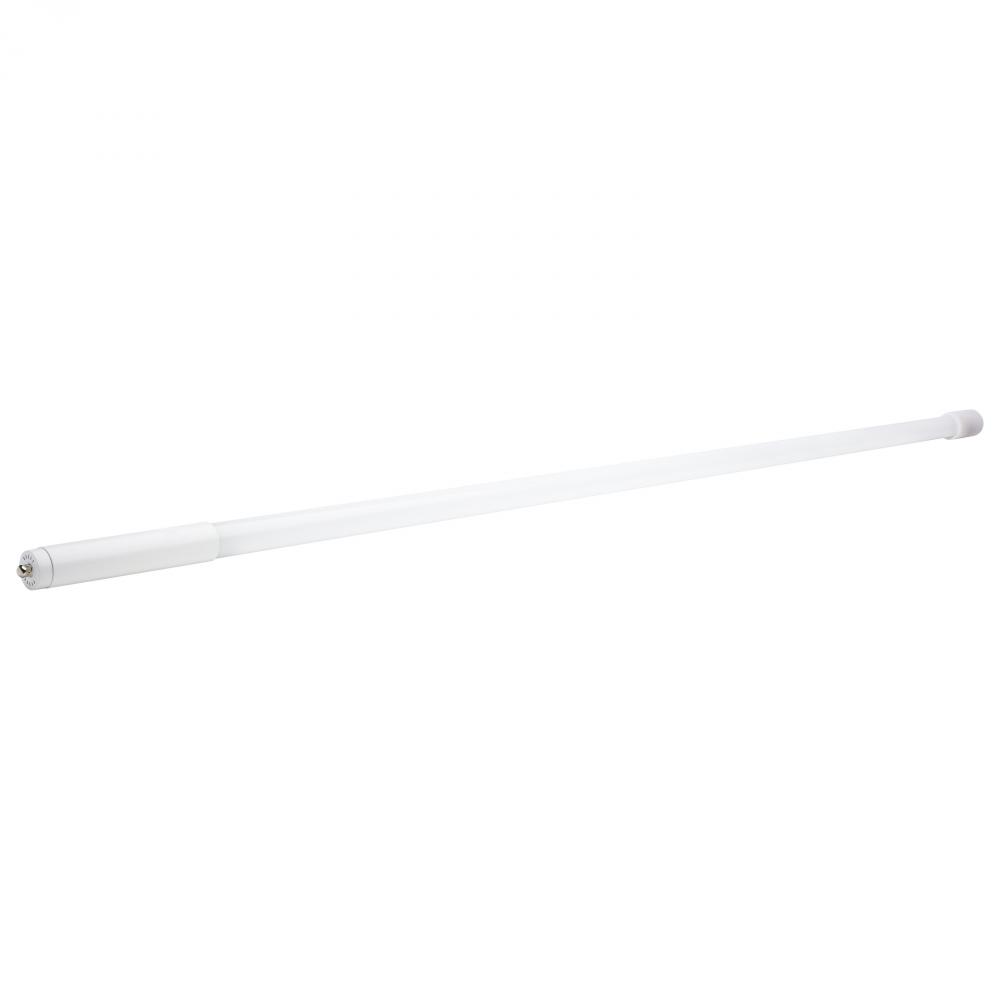

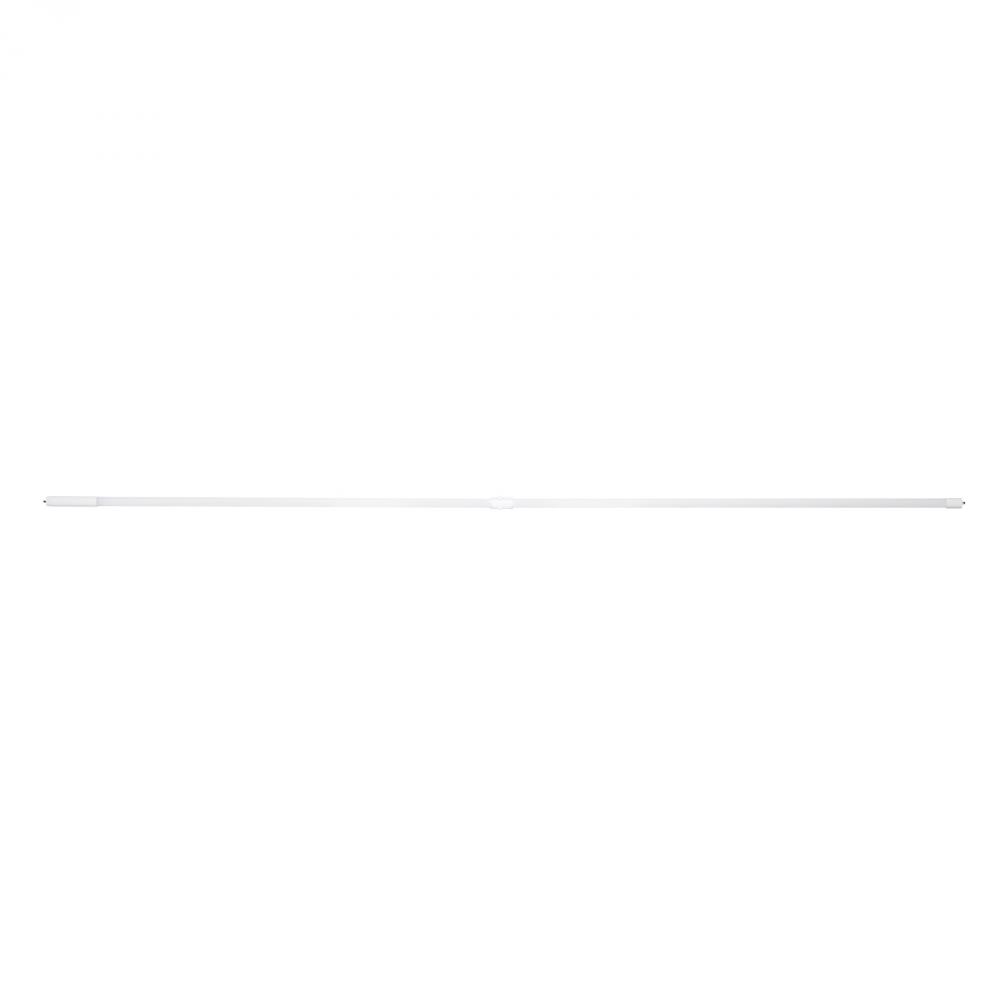

24/32/40 Wattage Selectable; 30/35/40/50/65K CCT Selectable; 8 Foot LED; Fa8 Base; 120-277 Volt; 2-pc
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Bulb Shape:
T8
Diameter:
1
EA Length:
48.46
Harmonized Codes:
8539.52.0051
Length:
93.75
Lumens:
3500L/4400L/5500L
Shap Carton Width:
2.68
Ship Carton Height:
1.42
Ship Weight:
1.36
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
1.48
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
210
Bulb ANSI Base:

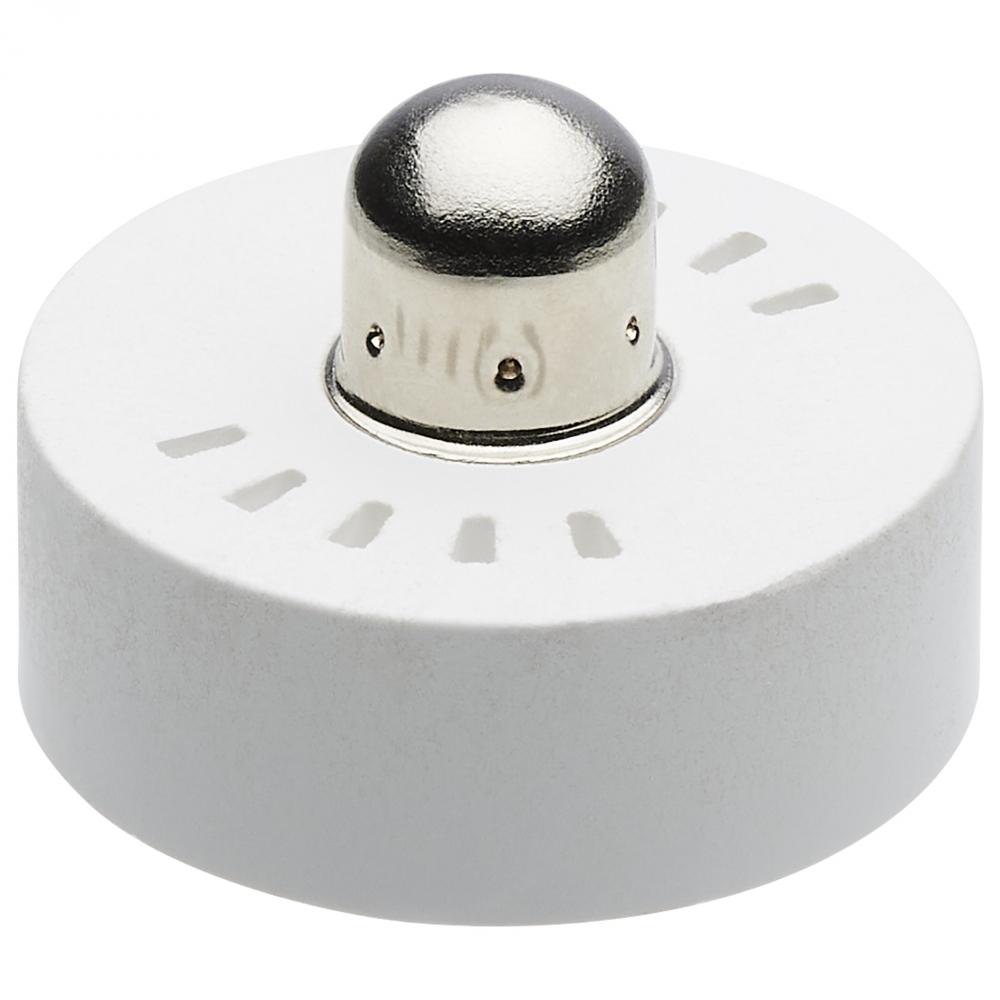

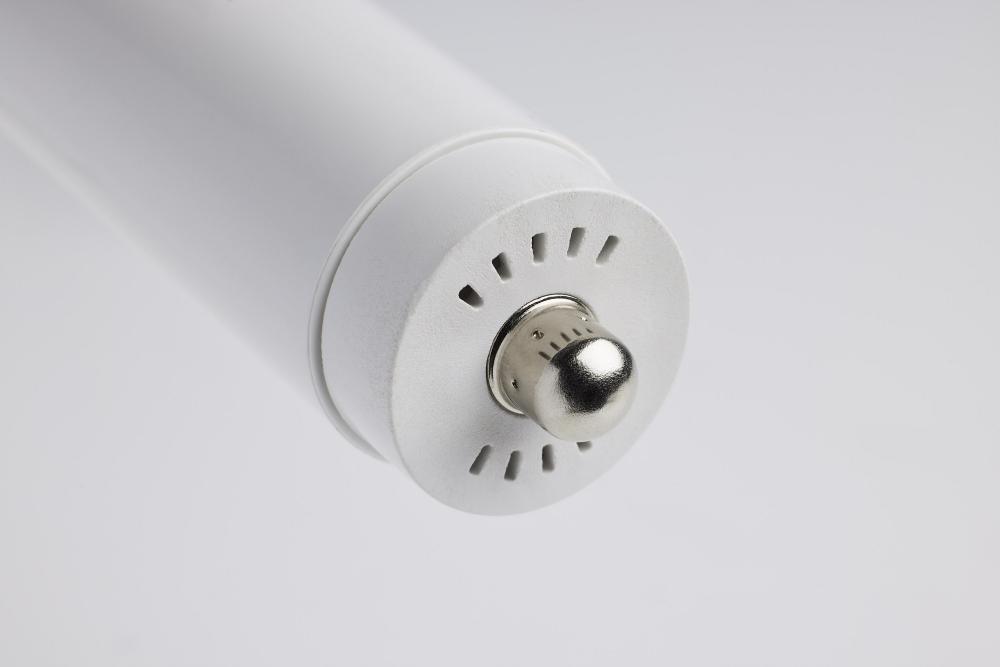

Fa8
Bulb Base:
Single Pin
Bulb Finish:
White
Carton Cubic Feet:
0.1067
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Daylight
Country Of Origin:
China
CRI:
80+
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-J3JX31
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
145.83/137.50/137.50 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Not for use in fully enclosed vapor tight fixtures
FCC Compliant:
Yes
Feature 1:

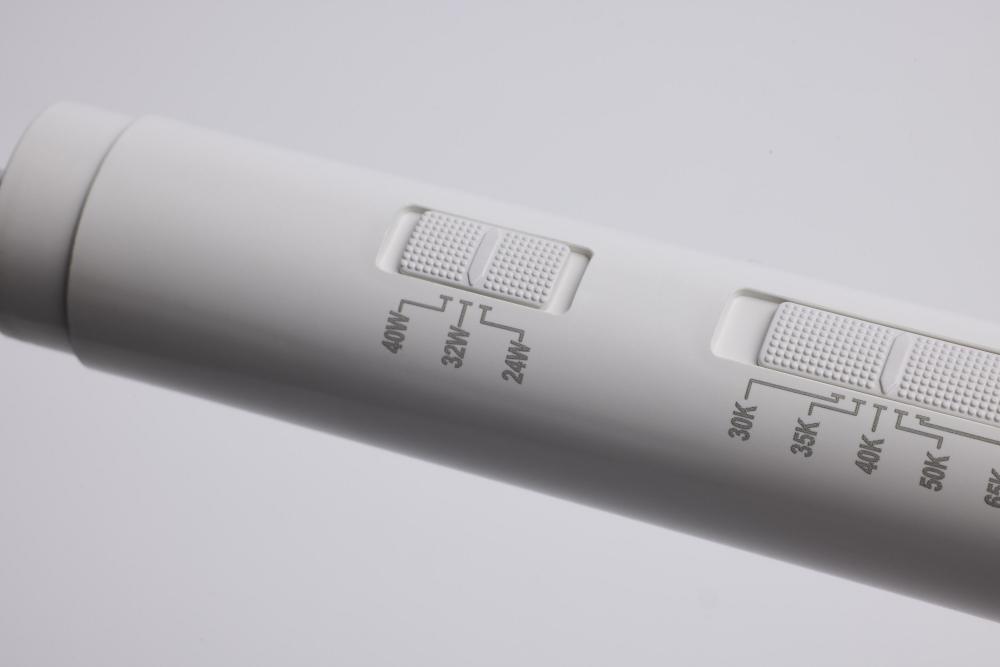

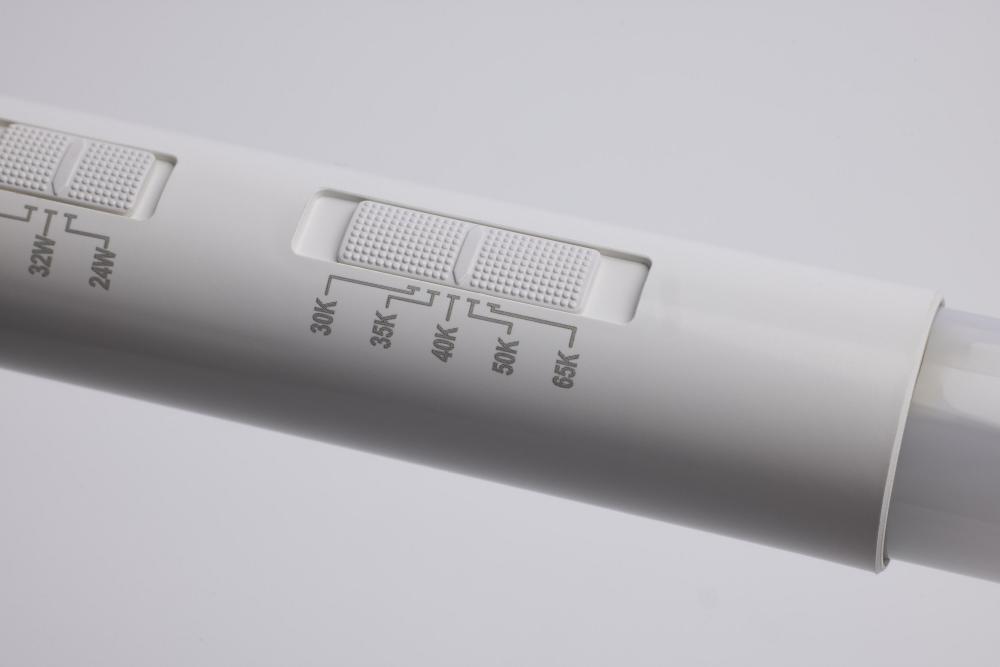

Field Selectable: 3 Wattage and 5 CCT
Feature 10:
Suitable for use in enclosed fixtures
Feature 2:
DLC Listed when used in Fa8 applications
Feature 3:

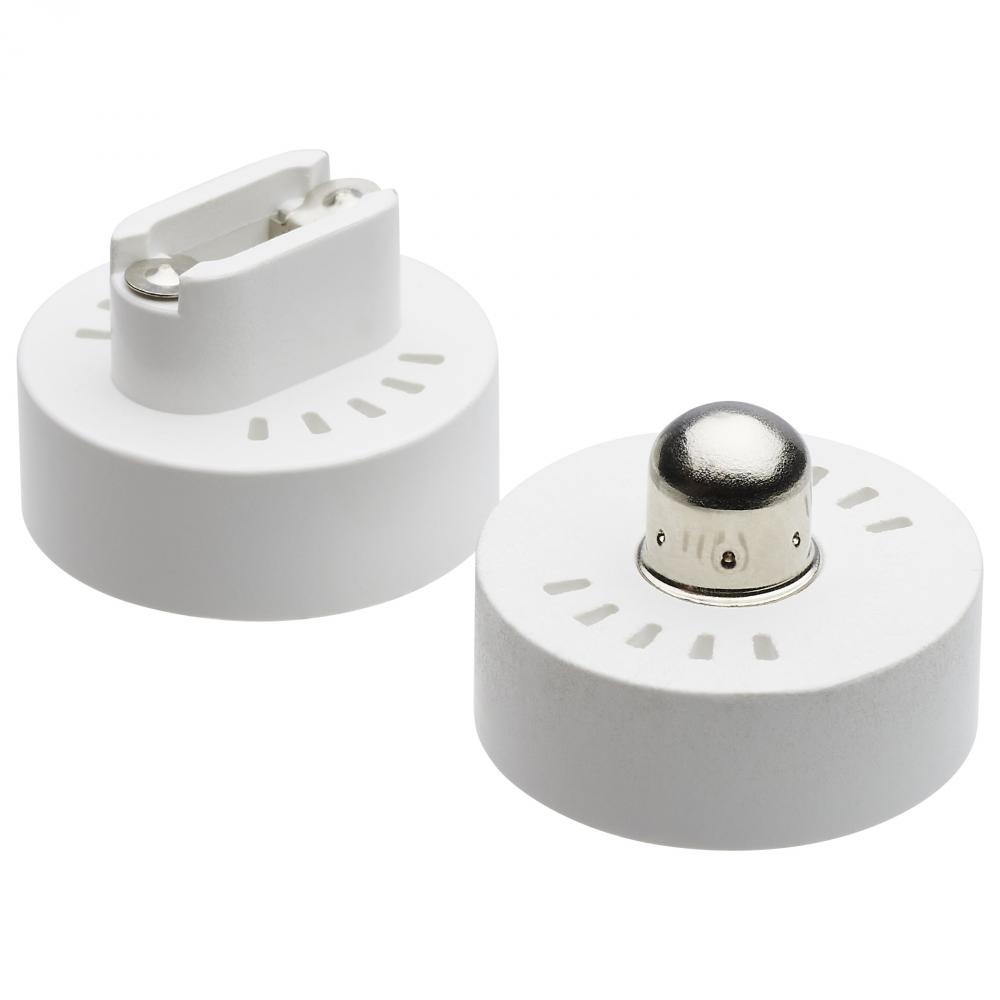

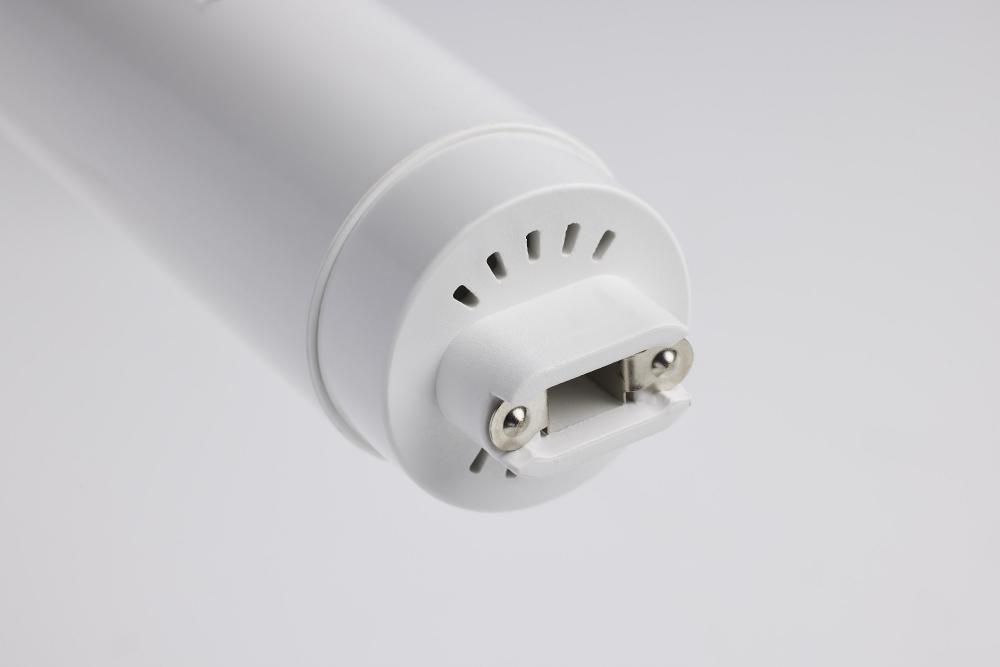

Optional R17d base caps included
Feature 4:

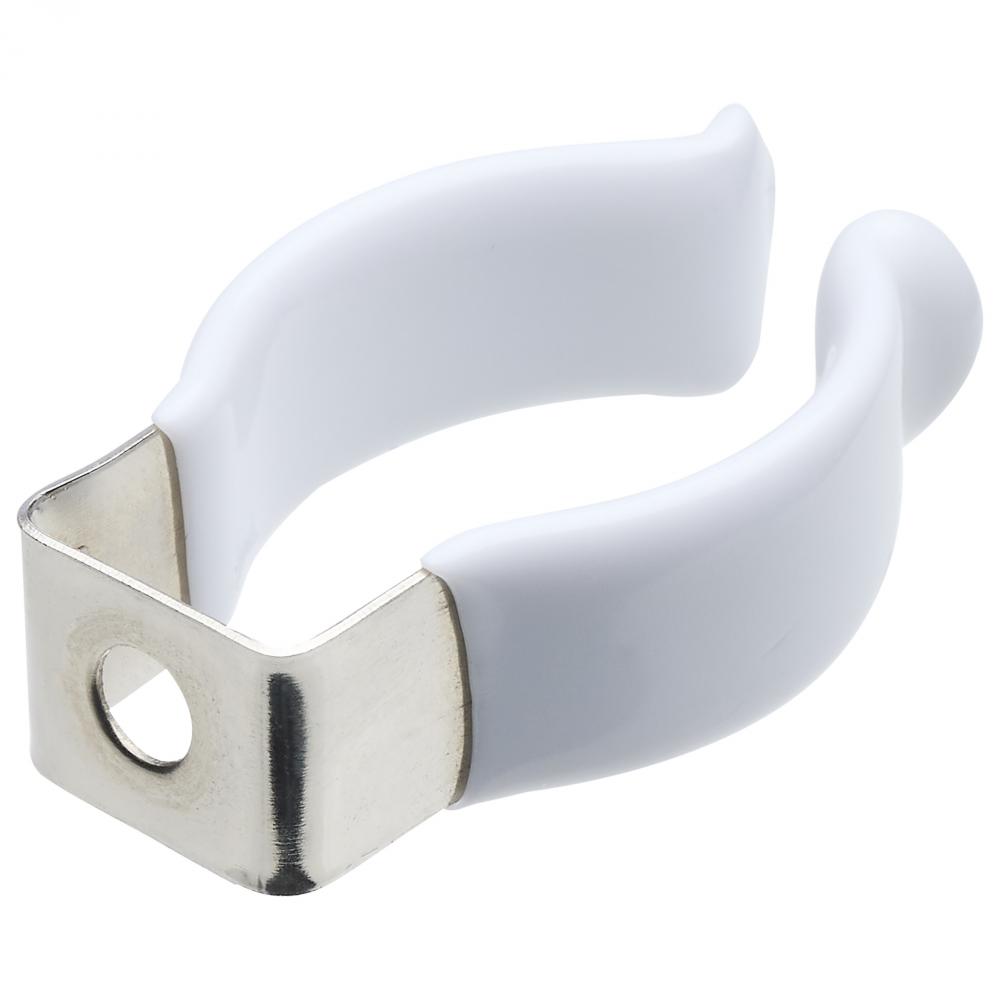

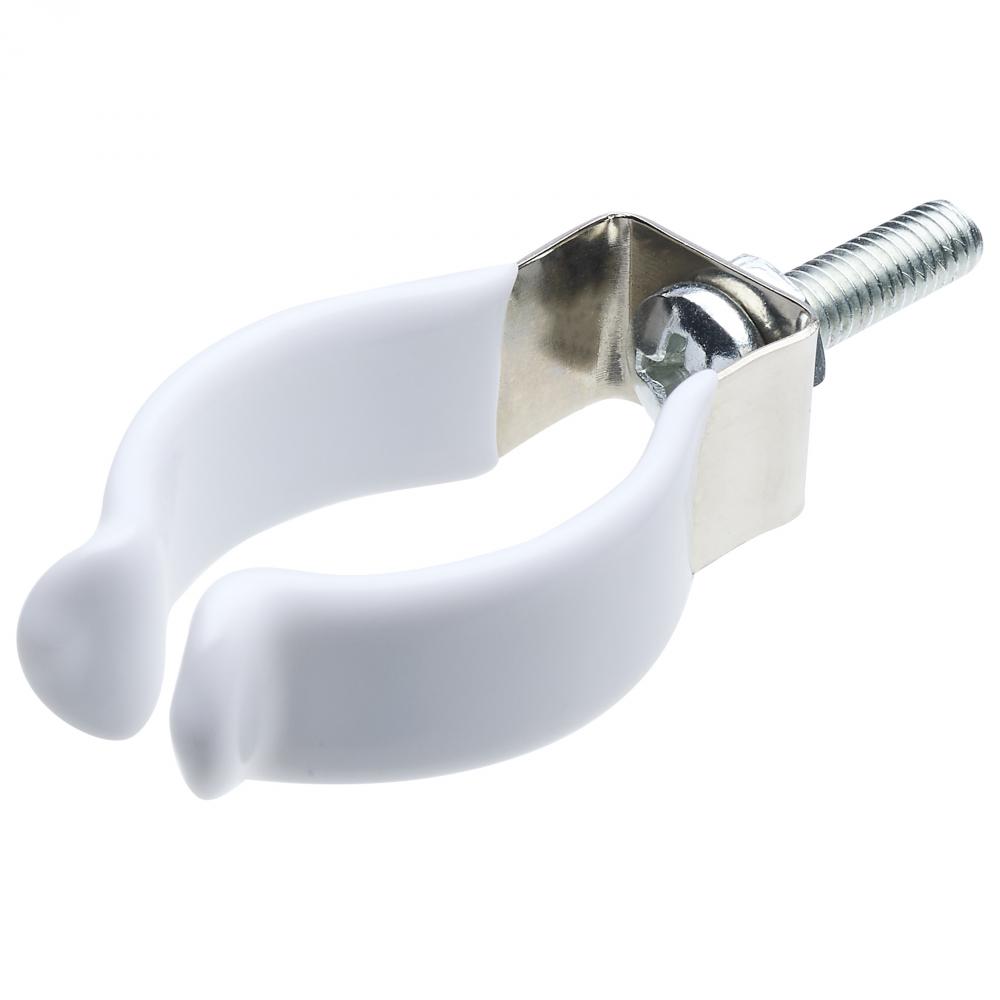

Includes C-clip for extra support where tubes connect
Feature 5:
PET Coated glass tube
Feature 6:
Compatible with optional 10W emergency driver
Feature 7:
Damp Location Rated
Feature 8:
Range Voltage 120V-277V
Feature 9:
210 Degree Beam Angle
Flourescent Equivalent:
59W/86W/96W
Housing Color:
White
Incandescent Equivalent:
100W
Includes:

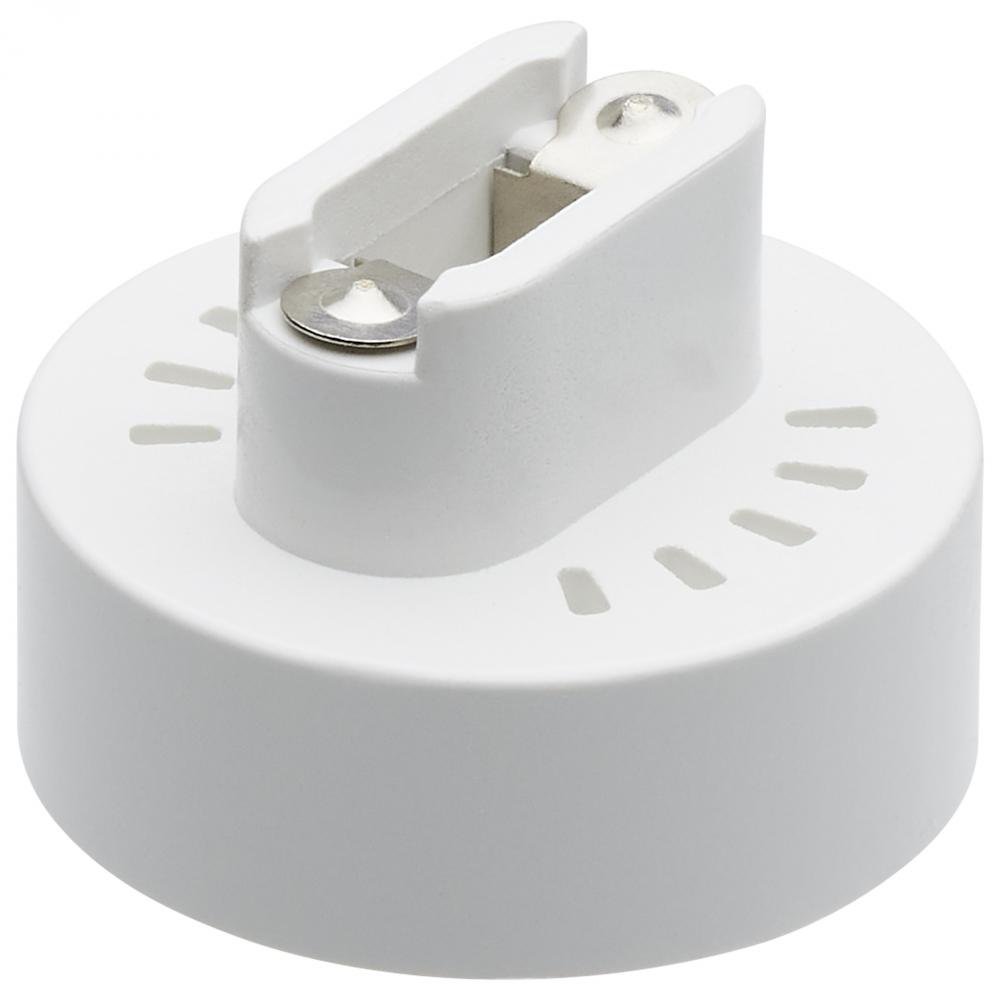

(1) Set R17d Endcaps; (1) C-Clip
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended
Lamp Filament:
LED
Location Rating:
Damp
Long Description:

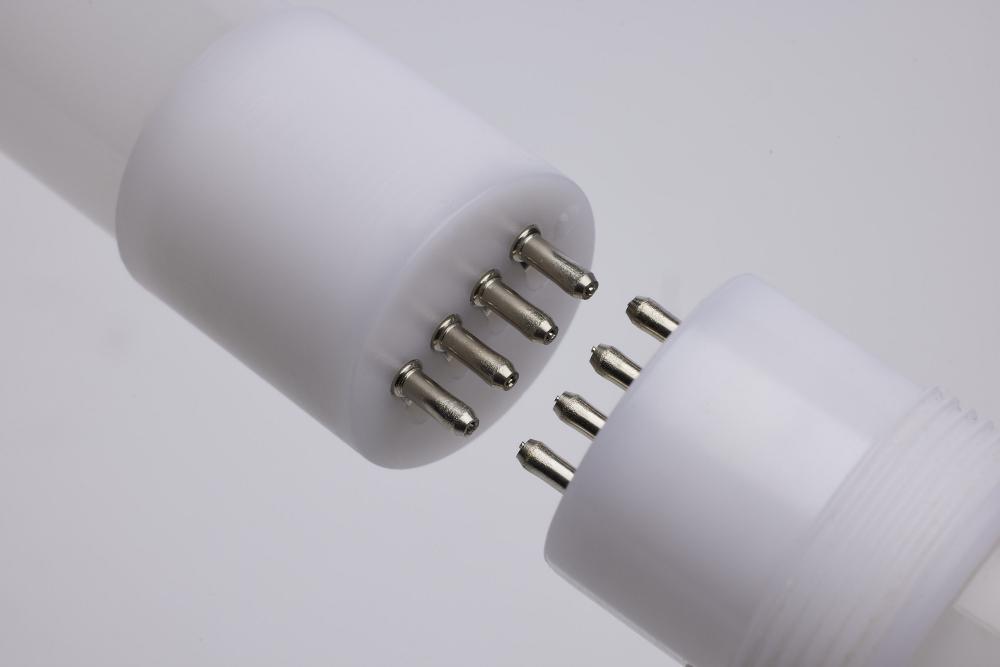

SATCO NUVO is always looking for the best ways to save time and costs on the job-site. The unique 2-piece design of the S11757 T8 lamp allows for reduced shipping costs and easier installation than a single 8-foot long tube by using two 4-foot sections tha
Material:
Glass
Nominal Length:
96
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
10
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO is always looking for the best ways to save time and costs on the job-site. The unique 2-piece design of this T8 lamp allows for reduced shipping costs and easier installation than a single 8-foot long tube by using two 4-foot sections that secu
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
40T8/LED/96-CCT/BP/R2PC/1PK
Style:
Utility
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<25%
Wattage Selectable:
Yes
Watts:
24W/32W/40W
