Item Sales Info
Part Number: LVJ28
/
Vendor ID Number: 27
/
Custom:

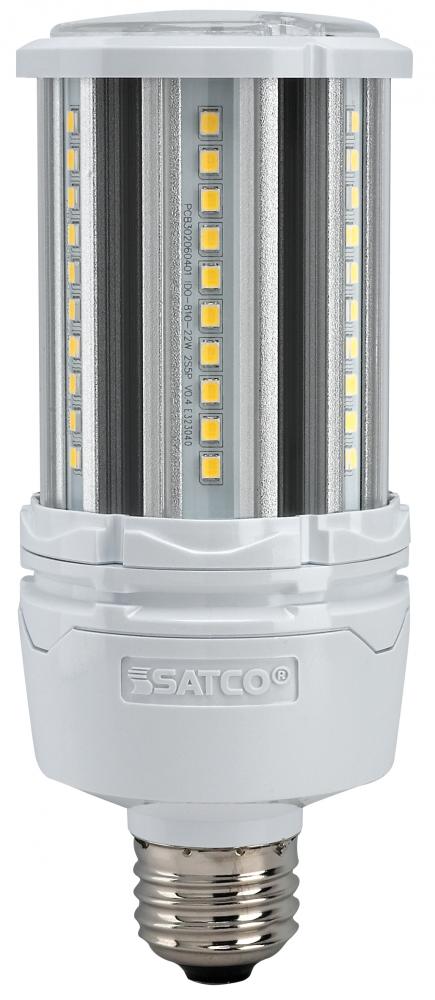

22 Watt LED HID Replacement; 2700K; Medium base; 100-277 Volt
52
68
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 2.38"
Product Overview
22 Watt LED HID Replacement; 2700K; Medium base; 100-277 Volt
Product Availability
-
Item has been discontinued
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish Family:
No Finish
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
2700K
Bulb Shape:
Corncob
Diameter:
2.38
EA Length:
2.87
Harmonized Codes:
8539.52.0091
Length:
5.94
Lumens:
2860L
Shap Carton Width:
2.87
Ship Carton Height:
7.28
Ship Weight:
0.84
Warranty:
5 Year Limited - Hi-Pro
Weight:
0.68
AC/DC:
AC 90-305V
Additional Info:
Emits no UV light; Contains no Mercury (Hg); Acceptable for use in food prep areas
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass- Direct wire only 100V-277V
Beam Spread:
300
Bulb ANSI Base:
E26
Bulb Base:
Medium
Bulb Finish:
Clear
Burning Position:
Universal
Carton Cubic Feet:
0.0347
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - >2600 Lumens
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
130.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
MOL: 5.94 inches, MOD: 2.38 inches
Feature 2:
Superior 80 CRI light quality, 2860 lumens, 2700K warm white light, with a 300 degree beam spread
Feature 3:
Rated for enclosed fixtures
Feature 4:
Damp rated, for use both indoors and outdoors
Feature 5:
22 watt LED replaces 150 watt incandescent
Feature 6:
Clear lens aluminum corncob shape with plastic white housing
Feature 7:
LED energy efficient fixture
Feature 8:
5 year limited warranty
Flourescent Equivalent:
40W
HID Equivalent:
100W
Housing Color:
White
Incandescent Equivalent:
150W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IP Rating:
IP64
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Clear
Lens Material:
Plastic (PS)
Location Rating:
Damp
Long Description:
Satco's S39671 22 watt LED HID replacement lamp is ideal for street lights, gymnasium lights, stadium lights, warehouse lights, parking garages and similar applications for lighting large, open areas. The clear bulb with its corncob shape and medium ba
Material:
Aluminum / Plastic
Minimum Compartment Size:
Length: 8.5 in. Width: 6 in. Depth: 6 in.
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
Satco's 22 watt LED HID replacement lamp is ideal for street lights, gymnasium lights, stadium lights, warehouse lights, parking garages and similar applications for lighting large, open areas. The clear bulb with its corncob shape and medium base has
SDS class:
LED_Lamp
Shatter Proof Text:
Shatter resistant materials
Short Description:
22W/LED/HID/2700K/100-277V E26
Specification Notes:
DLC 5.1 replacement S23147; Non-DLC replacement S49671
Style:
Contemporary
Surge Protection:
Built-in surge protection - 2.5KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
22W
