Item Sales Info
Part Number: LNHQ4
/
Vendor ID Number: 27
/
Custom:

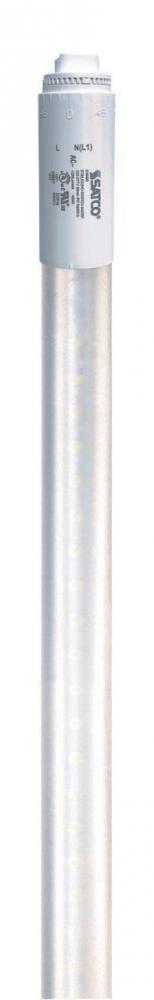

18 Watt T8 LED; 6500K; 2300 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
40
86
Pack Of: 1
- Manufacturers warehouse may be Out Of Stock.
- This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.00"
Product Overview
18 Watt T8 LED; 6500K; 2300 Lumens; 120-277 Volt; Type B; Single Ended; Ballast Bypass
Product Availability
-
Item has been discontinued and is no longer in stock
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White /vendors/vendorImages white.jpg
Style:
Traditional
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
6500K
Bulb Shape:
T8
Diameter:
1
EA Length:
47.44
Harmonized Codes:
8539.52.0051
Length:
46
Lumens:
2300L
Shap Carton Width:
1
Ship Carton Height:
1
Ship Weight:
0.85
Warranty:
5-Years
Weight:
0.8100000000000001
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
360
Bulb ANSI Base:
R17d
Bulb Base:
Recessed Double Contact HO/VHO
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0275
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Daylight
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
127.78 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
MOL: 46.00 inches, MOD: 1.00 inch
Feature 2:
Superior 83 CRI light quality, 2300 lumens, 6500K daylight, with a 360 degree beam spread
Feature 3:
Rated for enclosed fixtures
Feature 4:
Damp location rated
Feature 5:
18 watt LED replaces 63 watt fluorescent
Feature 6:
Frost finished linear plastic bulb
Feature 7:
LED energy efficient fixture
Feature 8:
5 year limited warranty
Flourescent Equivalent:
60W
Incandescent Equivalent:
90W
Installation Notes:
Not for use in vapor tight fixtures. No ballast or external driver required; Direct wire 120-277V line voltage; Single ended wiring
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Location Rating:
Damp
Long Description:
Satco's S16405 18 watt T8 LED Type B single ended ballast bypass linear lamps with powerful lumen output and long lasting superior light is perfect for use in commercial settings and the illumination of signs. The frost bulb features a recessed double
Material:
Plastic
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Order In Multiples Of:
10
Pack Type:
Egg Crate
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
4
RoHS Compliant:
Yes
Romance Copy:
Satco's 18 watt T8 LED Type B single ended ballast bypass linear lamps with powerful lumen output and long lasting superior light is perfect for use in commercial settings and the illumination of signs. The frost bulb features a recessed double contact
SDS class:
LED_Lamp
Short Description:
18T8/LED/HO-SIGN/48-865/BP
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
18W
