Item Sales Info
Part Number: X6T9M
/
Vendor ID Number: 27
/
Custom:
15 Watt 4 Foot T8 LED; 3500K CCT; Medium Bi Pin Base; Ballast Bypass; Single or Double Ended Wiring;
10
14
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.00"
Product Overview

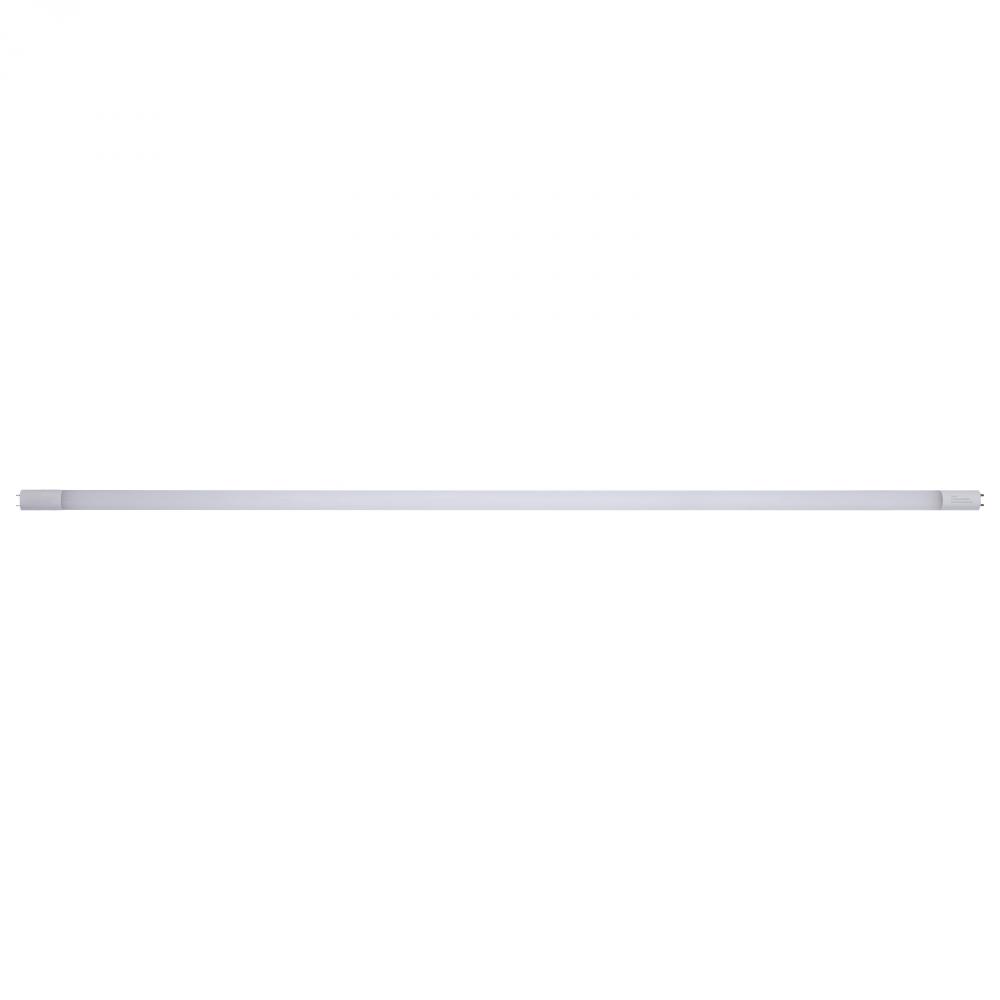

15 Watt 4 Foot T8 LED; 3500K CCT; Medium Bi Pin Base; Ballast Bypass; Single or Double Ended Wiring; 120-277 Volt
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3500K
Bulb Shape:
T8
Diameter:
1
EA Length:
47.78
Harmonized Codes:
8539.52.0051
Length:
47.78
Lumens:
2100L
Shap Carton Width:
1
Ship Carton Height:
1
Ship Weight:
0.5
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight:
0.46
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
210
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Gloss White
Burning Position:
Universal
Carton Cubic Feet:
0.0277
Cartons Per Unit:
1
CBCP:
210
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Neutral White
Country Of Origin:
China
CRI:
80+
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-2VHDVL
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
140.00 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
4-ft length
Feature 10:
210-degree beam angle
Feature 2:
15W
Feature 3:
25W/28W/30W/32W Fluorescent Replacement
Feature 4:
Ballast Bypass Type B
Feature 5:
120-277V Range Voltage
Feature 6:
Damp location rated
Feature 7:
Suitable for use in enclosed fixtures
Feature 8:
rated for use in damp locations
Feature 9:
Glass Tube
Flourescent Equivalent:
25W/28W/30W/32W
Housing Color:
White
Indoor Outdoor:
Indoor and Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
SATCO's S39918 LED Type B ballast bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. They are engineered for single or double-ended wiring options and will not light unless ballast is bypassed. Commercial venues, schools, h
Material:
Glass
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
>0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO's Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps are available in 2', 3', and 4' lengths. They are engineered for single or double-ended wiring options and will not light unless ballast is b
SDS class:
LED_Lamp
Short Description:

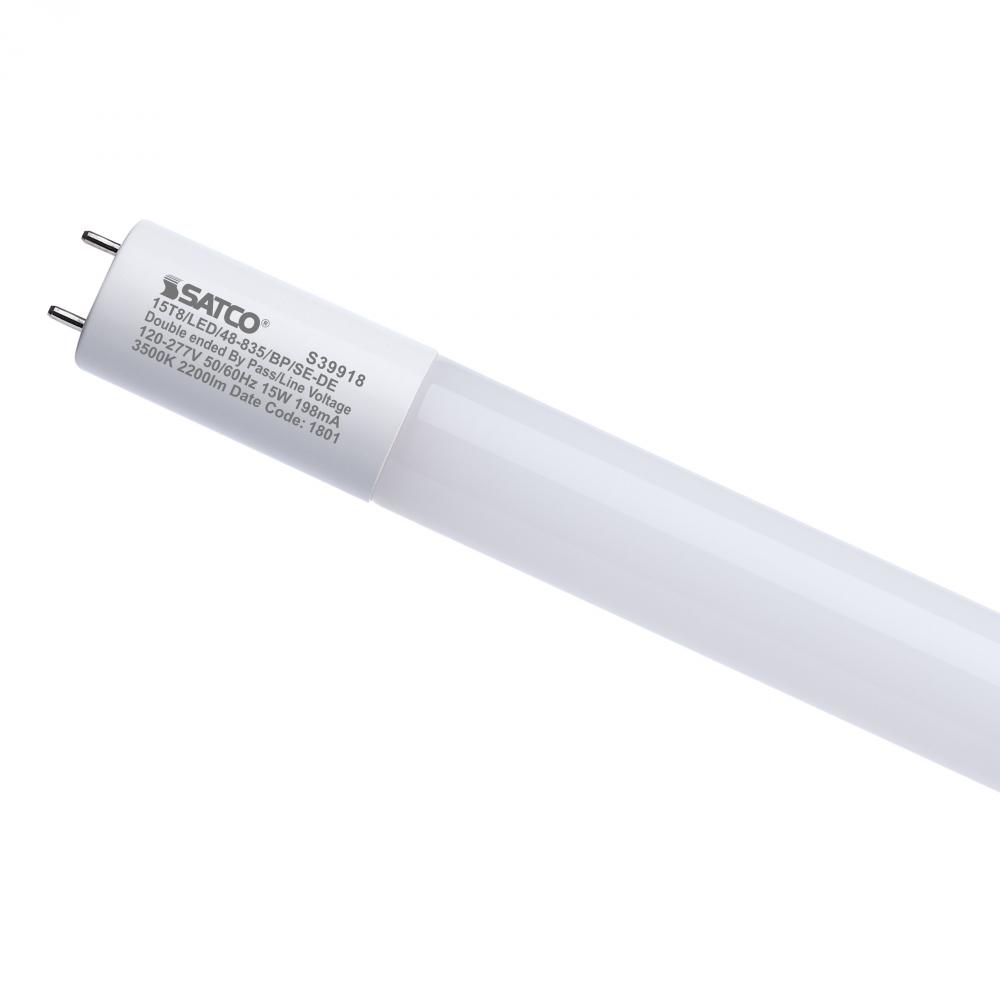

15T8/LED/48-835/BP/SE-DE
Style:
Utility
Surge Protection:
Built-in surge protection - 1KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Watts:
15W
