Part Number: X6T7N
/
Vendor ID Number: 27
/
Custom:
14 Watt; 4 Foot T8 LED; G13 Base; 3000K; Type A
9
00
Pack Of: 1
5866 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 1.10"
Product Overview

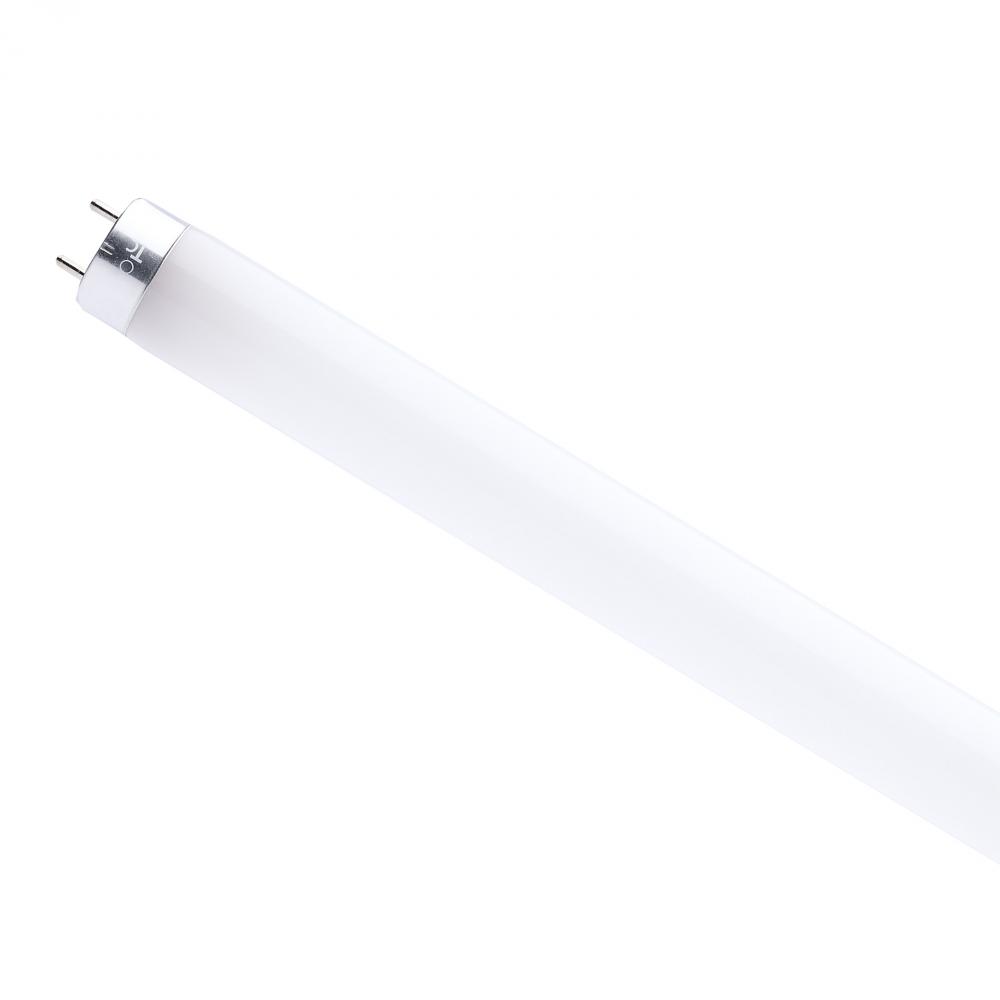

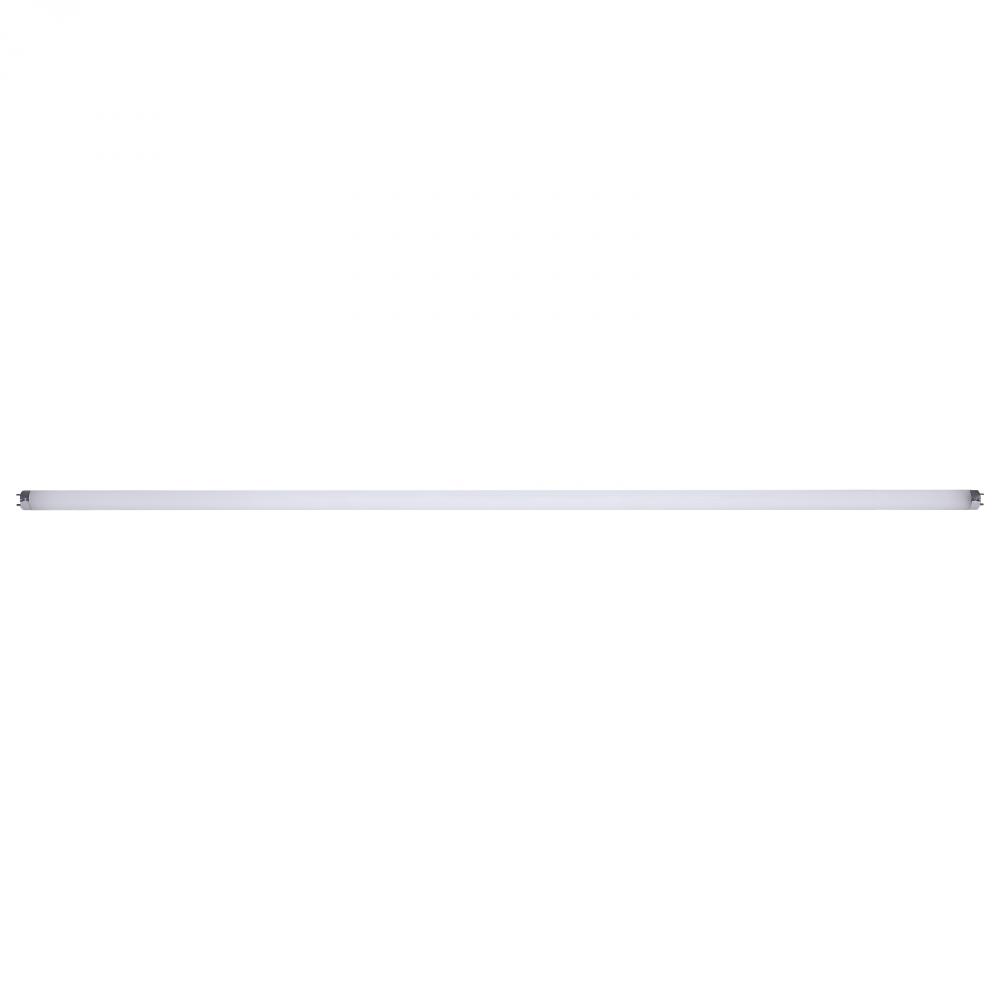

14 Watt; 4 Foot T8 LED; G13 Base; 3000K; Type A
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
LED T8
Volts:
Ballast Dependent
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K
Bulb Shape:
T8
Diameter:
1.1
EA Length:
48
Harmonized Codes:
8539.52.0051
Length:
47.78
Lumens:
2200L
Shap Carton Width:
1.1
Ship Carton Height:
1.1
Ship Weight:
0.42
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
0.38
Ballast Bypass Direct:
Direct
Ballasting Requirements:
Ballast required
Beam Spread:
210
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Gloss White
Carton Cubic Feet:
0.0336
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-2GJVW7
DLC Primary Use:
Replacement Lamps (Plug and Play) (UL Type A)
Efficacy:
157.14 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
3000K CCT
Feature 2:
Type A - Direct Replacement
Feature 3:
Integrated Thermal Protection
Feature 4:
Damp location rated
Feature 5:
Dimmable with Select Ballasts
Feature 6:
Rated for Use in Enclosed Fixtures
Feature 7:
NSF Rated
Feature 8:
Glass Tube
Feature 9:
Double Ended Wiring
Flourescent Equivalent:
32W/30W/28W/25W
Housing Color:
White
Incandescent Equivalent:
175W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type A
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
SATCO NUVO's S49975R1Type A LED T8 Lamps are a direct replacement for traditional fluorescent tubes for use in a variety of applications. Dimming capable with compatible ballasts, these lamps allow for a customized lighting experience. High-performing,
Material:
Glass / Steel
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
7
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's Type A LED T8 Lamps are a direct replacement for traditional fluorescent tubes for use in a variety of applications. Dimming capable with compatible ballasts, these lamps allow for a customized lighting experience. High-performing, these l
SDS class:
LED_Lamp
Short Description:
14/T8/LED/48-830/DR
Style:
Utility
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
14W
