Part Number: LRHDX
/
Vendor ID Number: 27
/
Custom:

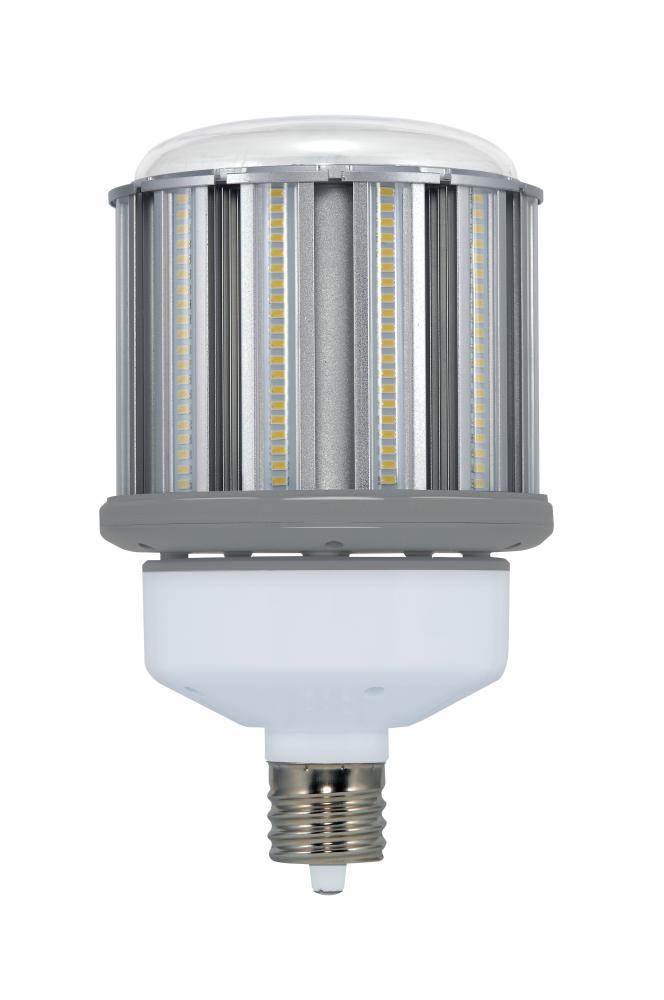

100 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-347 Volt
262
06
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 5.88"
Product Overview
100 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-347 Volt
Product Availability
-
Item has been discontinued and is no longer in stock
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Style:
Traditional
Lumens:
3300+
Kelvin:
4501-5000
Wattage:
100w
Finish Family:
No Finish
Category:
LED
Sub-Category:
HID Replacements
Volts:
277V-347V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
Corncob
Diameter:
5.88
EA Length:
7.4
Harmonized Codes:
8539.52.0091
Length:
9.609999999999999
Lumens:
13300L
Shap Carton Width:
7.4
Ship Carton Height:
11.1
Ship Weight:
4.66
Warranty:
5 Year Limited - Hi-Pro
Weight:
3.6
AC/DC:
AC 250-380V
Additional Info:
Emits no UV light / Contains no Mercury (Hg)
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass-Direct wire only 277-347V

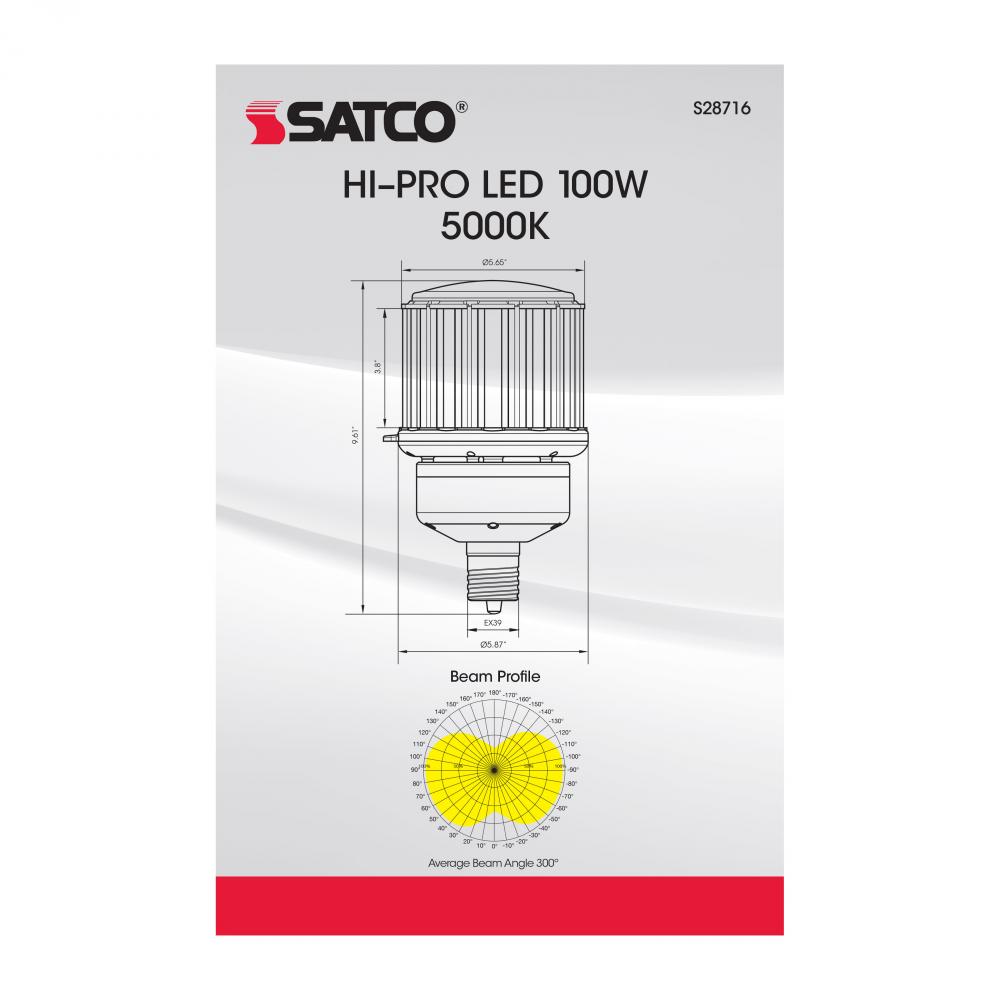

Beam Spread:
300
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
Clear
Burning Position:
Base Up or Down
Carton Cubic Feet:
0.3518
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
133.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Flourescent Equivalent:
150W
HID Equivalent:
400W
Housing Color:
White/Grey
Incandescent Equivalent:
500W
Includes:
Safety chain
Indoor Outdoor:
Indoor;Outdoor

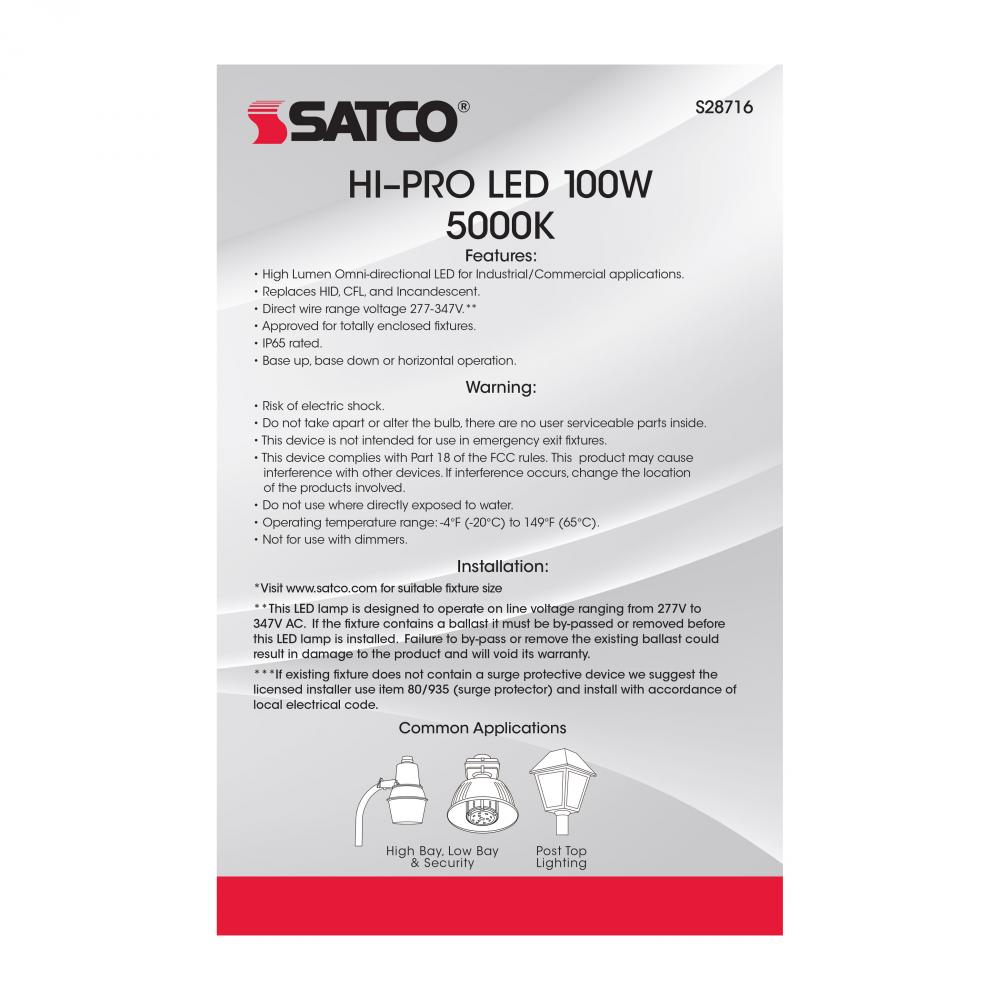

Installation Notes:
Not for use in vapor tight fixtures.
IP Rating:
IP65
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Clear
Location Rating:
Damp
Material:
Aluminum / Plastic
Minimum Compartment Size:
Length: 17.3 in. Width: 9.25 in. Depth: 9.25 in.
Operating Frequency:
50-60Hz
Operating Temp:
-20C (-4F) to +65C (+149F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.88
Quantity In Pack:
1
R9 Value:
13
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Short Description:
100W/LED/HID/5K/277-347V/EX39
Style:
Contemporary
Technology:
LED
Thermal Management:
Hi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control).
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
100W
