Part Number: A6627
/
Vendor ID Number: 81
/
Custom:

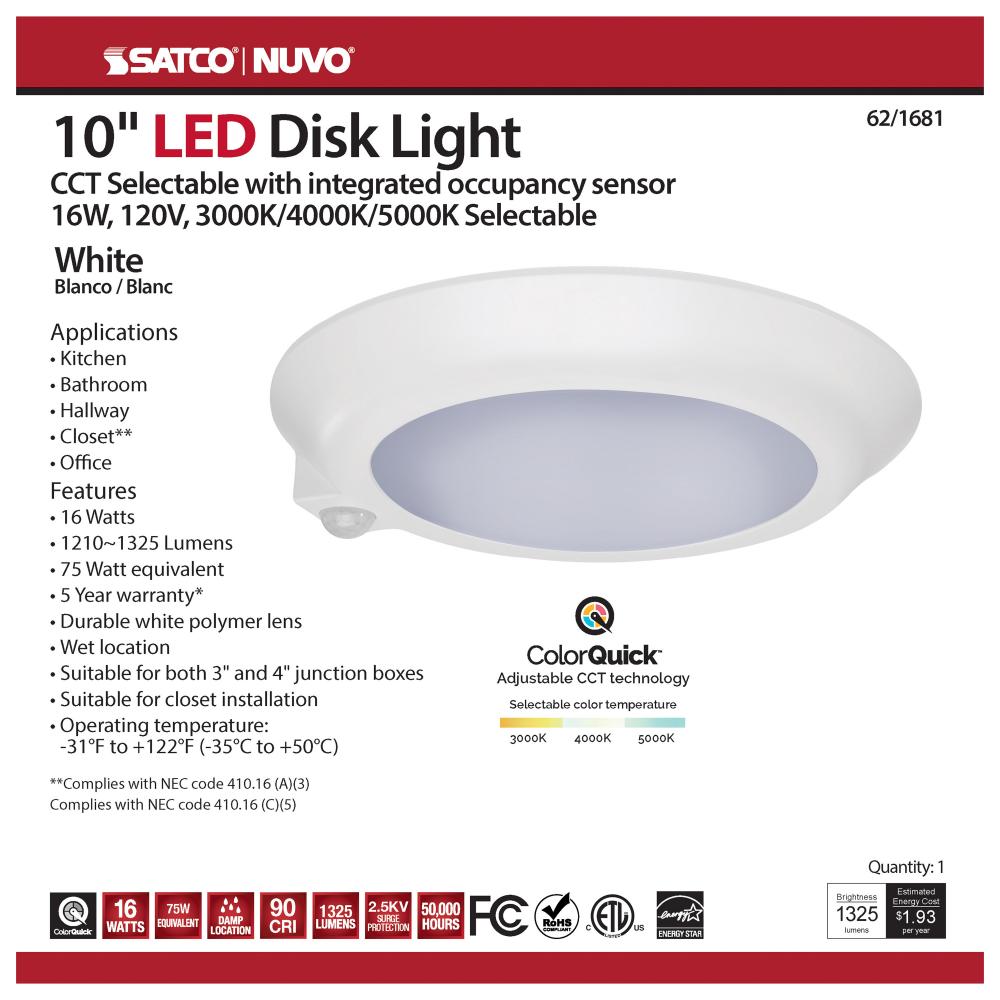

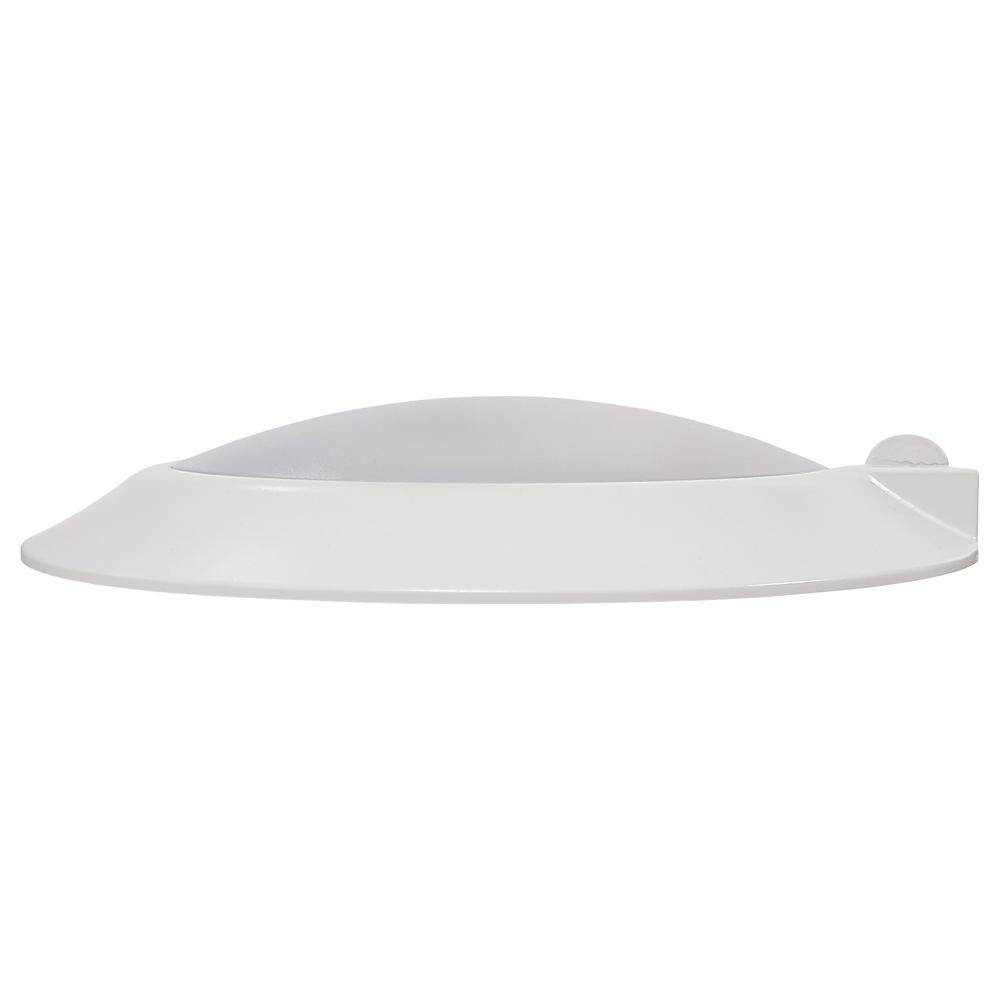

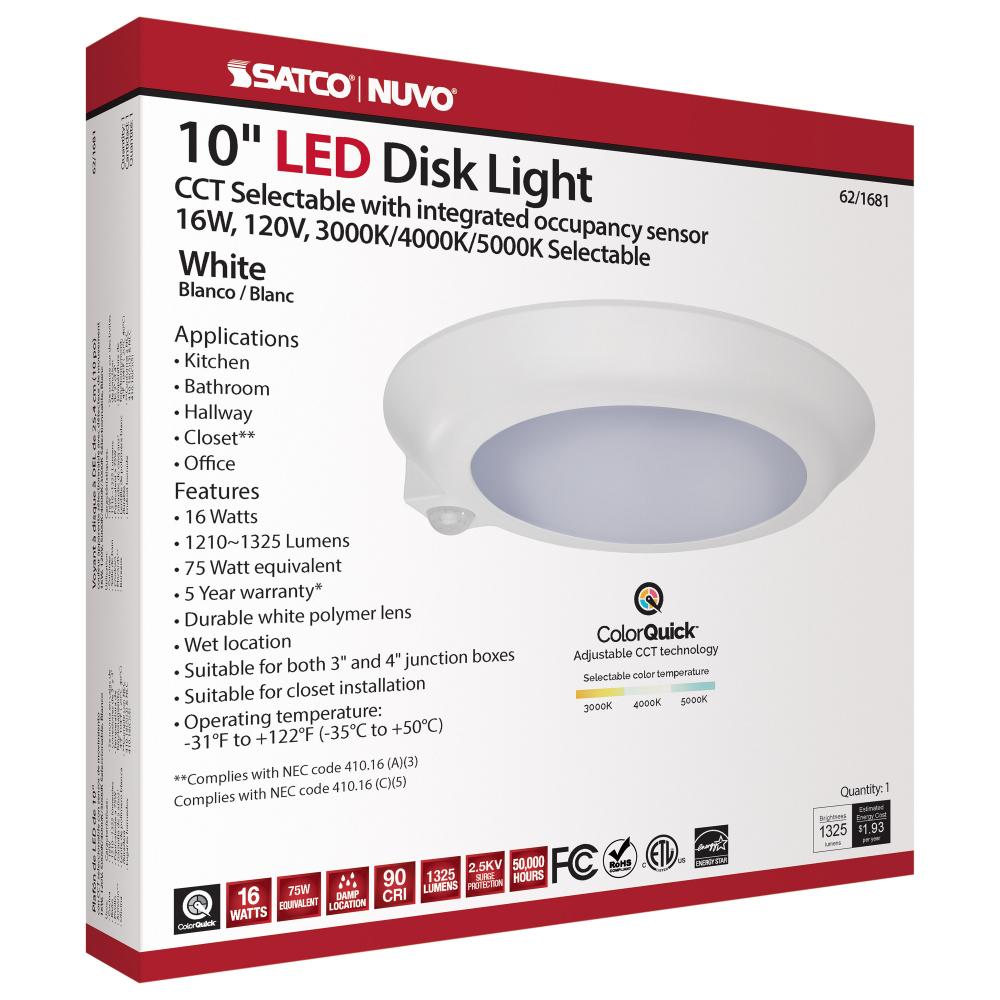

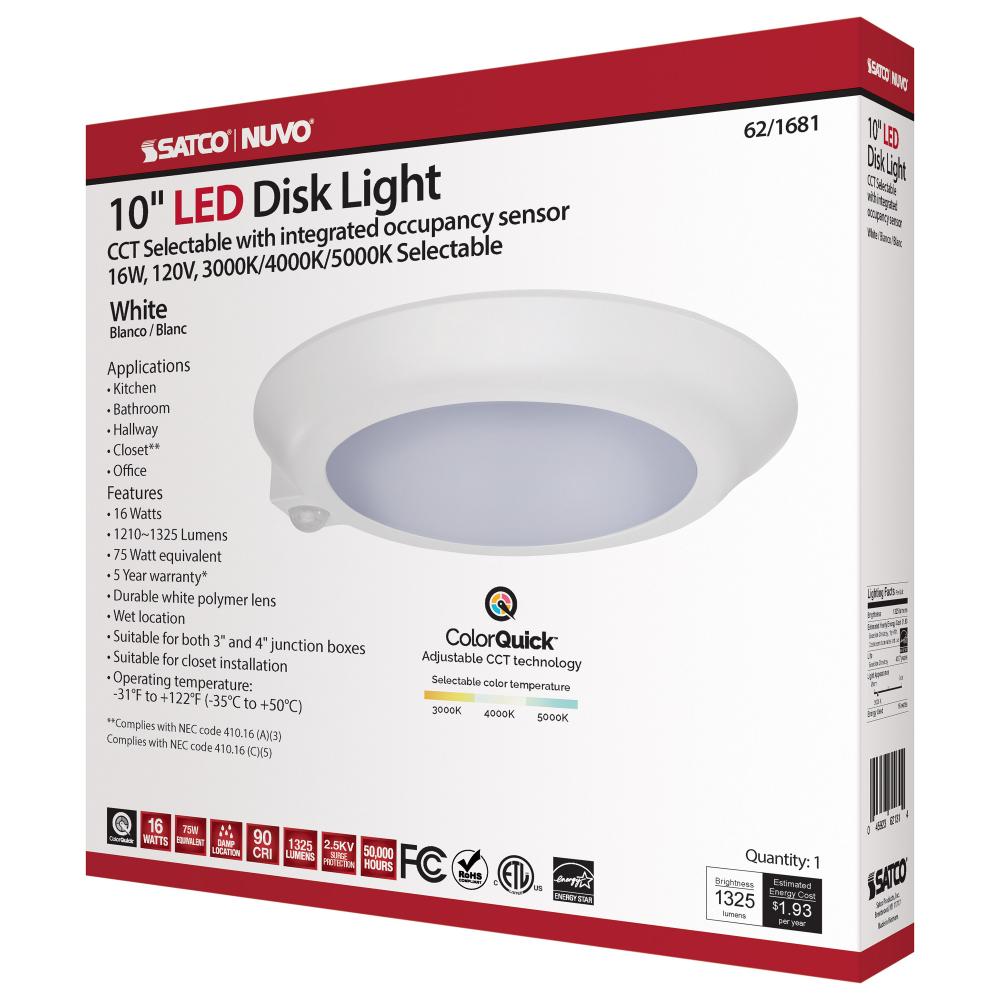

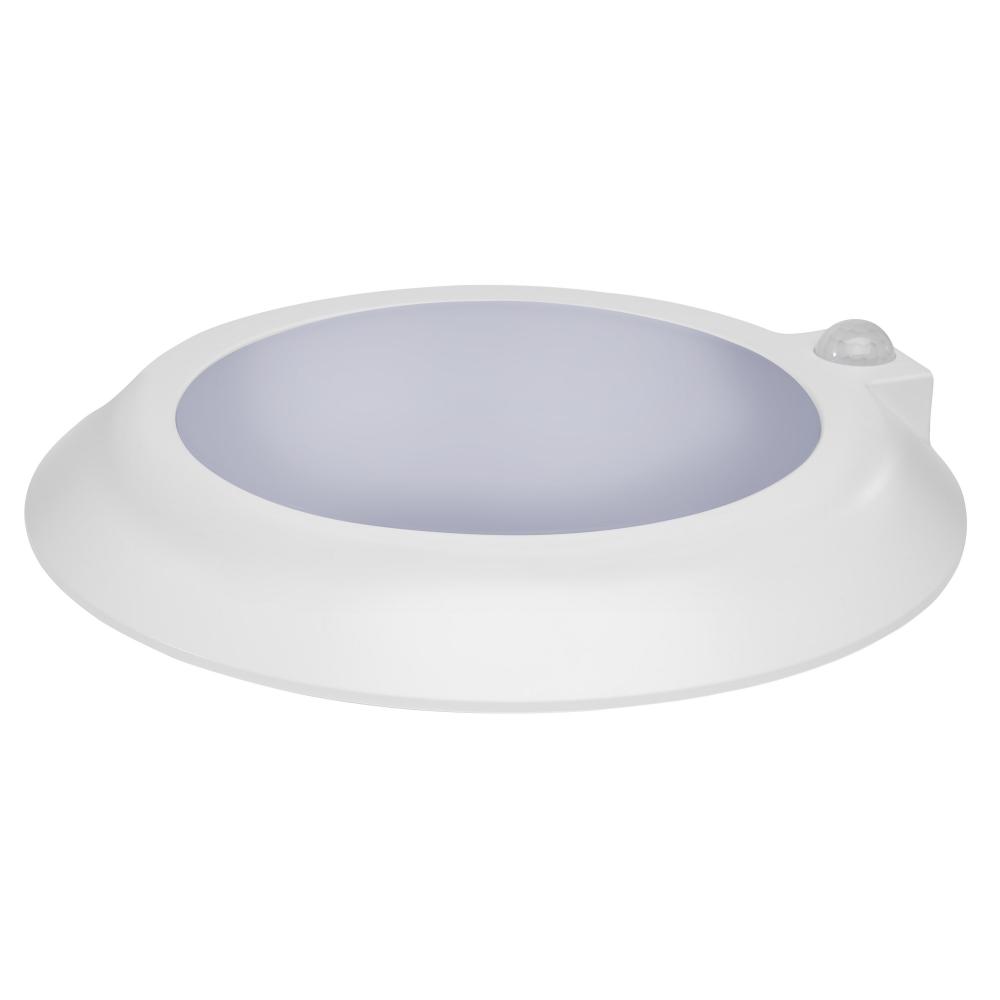

10 in.; LED Disk Light; CCT Selectable 3K/4K/5K; With Occupancy Sensor; White Finish
59
00
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

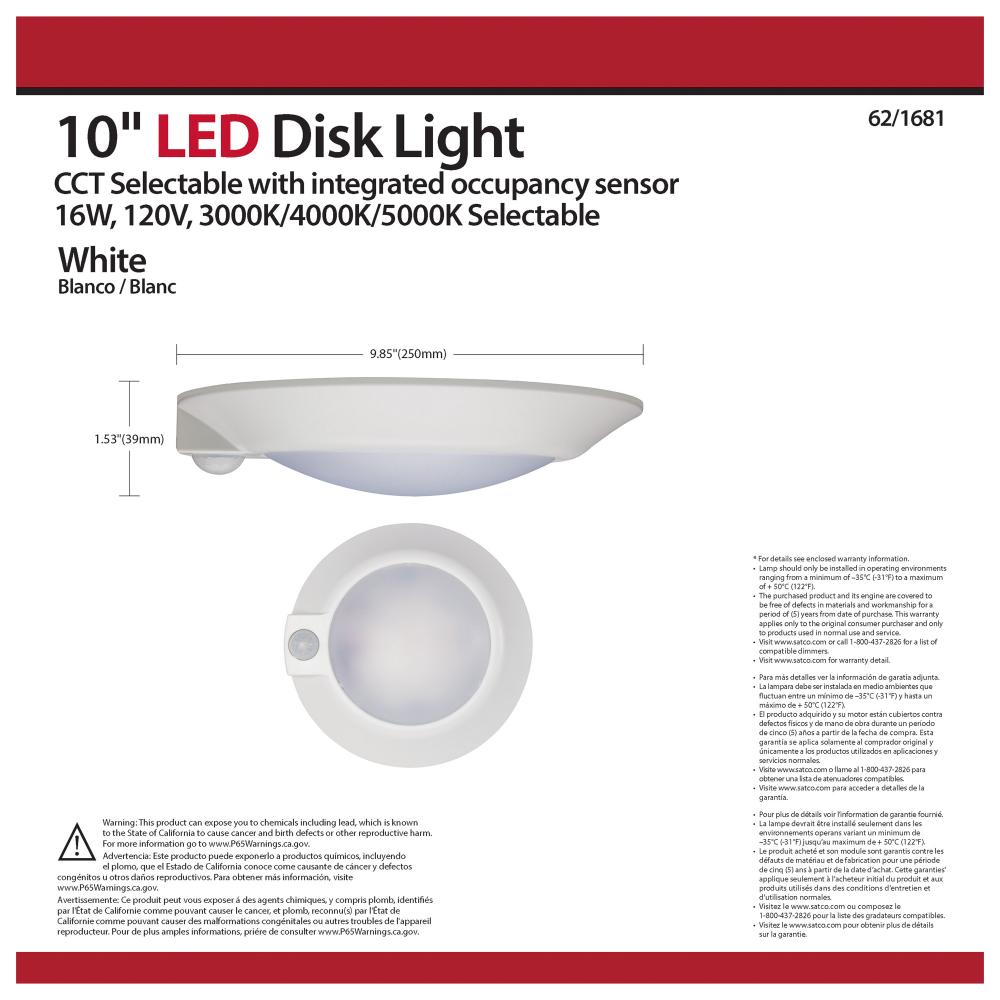

Dimensions
Height: 1.53"
Width: 9.85"
Finish
White
Product Overview
10 in.; LED Disk Light; CCT Selectable 3K/4K/5K; With Occupancy Sensor; White Finish
Product Availability
-
Item has been discontinued and is no longer in stock
Technical Details
Details
Category:
Flush Mounts
Subcategory:
Other Flush Mounts
Finish:
White /vendors/vendorImages white.jpg
Style:
Transitional
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Lumens:
1101-1600
Kelvin:
4001-4500
Finish:
White /vendors/vendorImages white.jpg
Category:
Close-to-Ceiling
Sub Category:
LED Disk
Style:
Transitional
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Diameter:
9.85
Dimmable:
Non-Dimmable
Each Height:
10.2
Each Length:
10.2
Each Width:
1.89
Lumens:
1210L-1325L
Tariff Code:
9405.11.8020
Warranty:
5 Year Limited - Fixtures
Amps:
0.133A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
110
CA Prop-65:
Lead

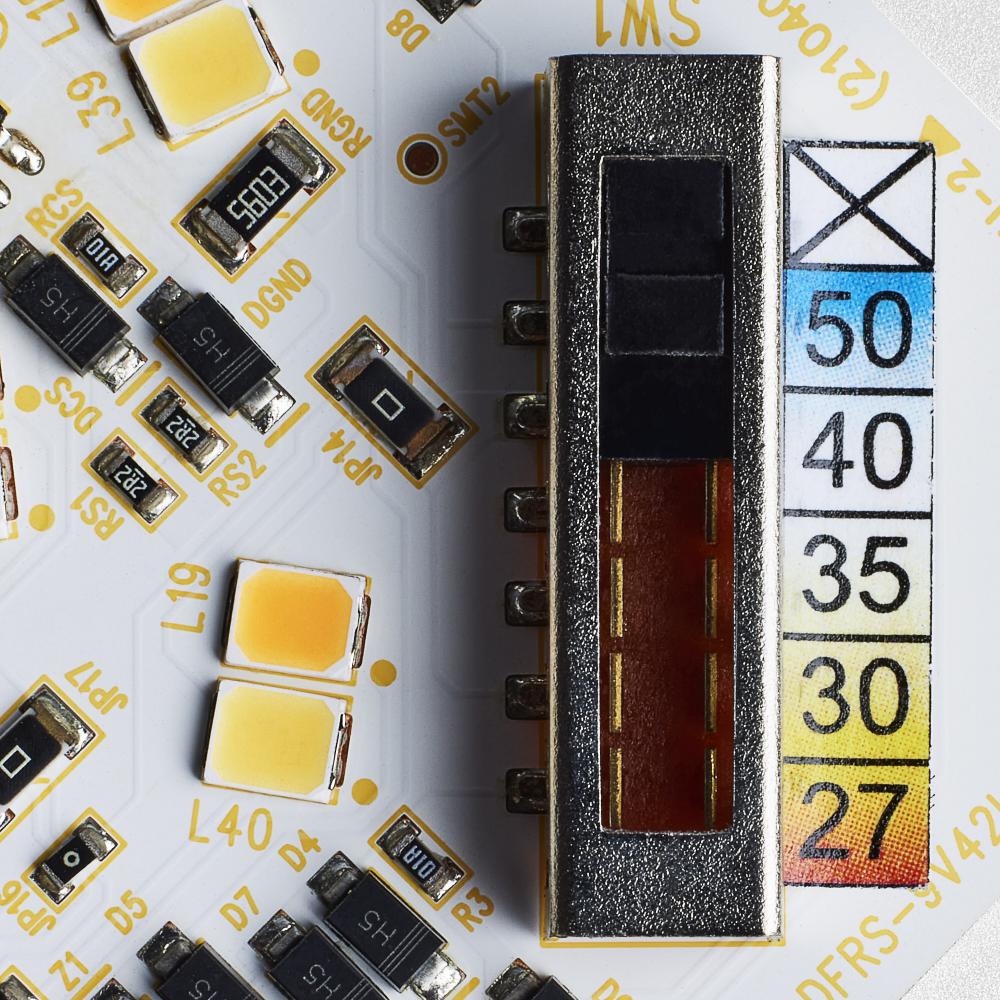

CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Closet Rated:
Yes
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
90+
Dimmable Down To:
100 to 10 percent
Each Cube:
0.1138
Each Quantity:
1
Efficacy:
75.63/79.22/82.81 LPW
FCC Compliant:
Yes
Feature 1:
Closet Rated - NEC 410.16(A)(3) and NEC 410.16(C)(5)
Feature 2:
Mounts to 3 in. and 4 in. Junction Boxes
Feature 3:
Damp location rated
Feature 4:
Rated for 50,000 Hours
Feature 5:
5 Year Warranty
Feature 6:
Operating temperature ranging from a minimum of -35C (-31F) to a maximum of 50C (122F)
Feature 7:
Integrated Occupancy Sensor
Finish Family:
White
Fixture shape:
Round
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
Satco's new LED Disk Light fixtures are the perfect choice for adding cost effective, energy-efficient lighting to a variety of areas in your home. Sku 62-1681 features a 10 inch diameter, 3K/4K/5K CCT selectability all in a traditional white finish. N
Material:
Steel
Mounting Procedure:
Ceiling
NEC Compliance:
Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
Operating Frequency:
60Hz
Operating Temp:
-35C (-31F) to +50C (+122F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Has Occupancy Sensor
Power Factor:
0.91
Quantity In Pack:
1
R9 Value:
84
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
LED Disk Light fixtures now feature Satco's ColorQuick selectable CCT technology for even more versatility. The simple CCT selection, easy installation, choice of diameter size, finish color, and packaging options make these the most functional design
Safety Listing:
cETLus
SDS class:
LED_Fixture
Short Description:
10" LED DISK LIGHT W/ OCC
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Wattage Selectable:
No
Weight Lb.:
1.26
